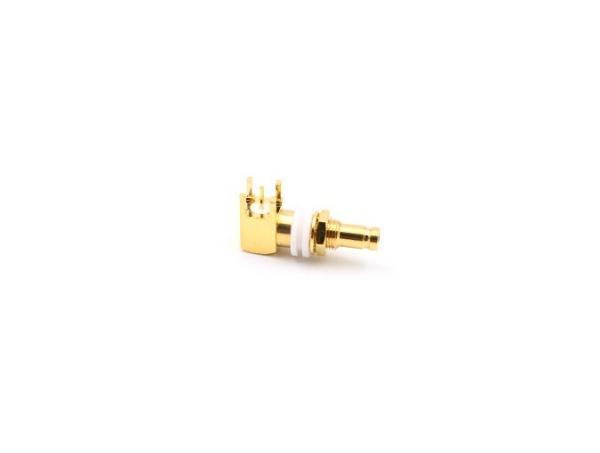

SAA Female 75Ω Right Angle Bulkhead PCB Mount RF Coaxial Connector
SAA Female 75Ω Right Angle Bulkhead PCB Mount RF Coaxial Connector
SAA Female 75Ω Right Angle Bulkhead PCB Mount RF Coaxial Connector
SAA Female 75Ω Right Angle Bulkhead PCB Mount RF Coaxial Connector
SAA Female 75Ω Right Angle Bulkhead PCB Mount RF Coaxial Connector
SAA Female 75Ω Right Angle Bulkhead PCB Mount RF Coaxial Connector
Specifications
Brand Name :
Terui
Model Number :
SAA-75KYWHD
Certification :
RoHS
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
Standard export packaging
Description

SAA Female 75Ω Right Angle Bulkhead PCB Mount RF Coaxial Connector

Product Details

SAA Female 75Ω Right Angle Bulkhead PCB Mount RF Coaxial Connector

Teruilai P/N: SAA-75KYWHD

RoHS Certificate: Complian

Electrical data Requirments
Impedence 75Ω
Frequency DC-1GHz
Center Contact Resistance ≦10MΩ
Outer Contact Resistance ≦7.5MΩ
Insulation Resistance ≧1000mΩ
Mechanical & Enviromental Requirments
Temperature range -45℃ ~ +85℃
Durability >500 cycles
Material &plating Requirments
Connector parts Material Plating
Body Brass Gold
Pin Contact Beryllium copper Gold
Gasket Silicon rubber
Insulators Teflon
