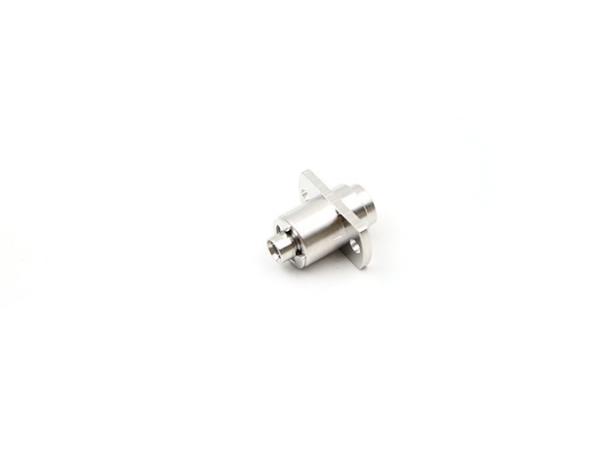

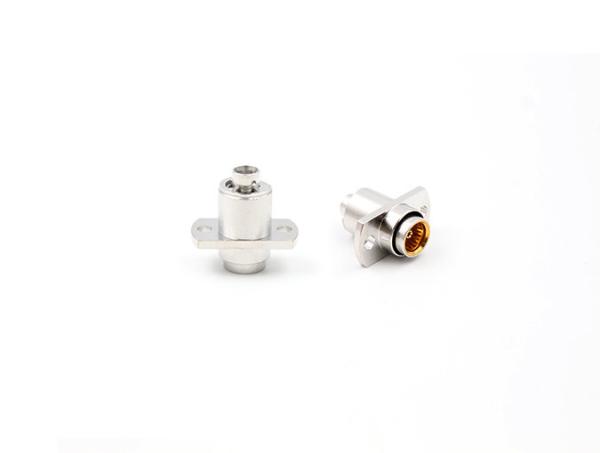

RF Connector BMA Female Flange Mount .141 Cable BMA-KFB3
RF Connector BMA Female Flange Mount .141 Cable BMA-KFB3
RF Connector BMA Female Flange Mount .141 Cable BMA-KFB3
RF Connector BMA Female Flange Mount .141 Cable BMA-KFB3
RF Connector BMA Female Flange Mount .141 Cable BMA-KFB3
RF Connector BMA Female Flange Mount .141 Cable BMA-KFB3
Specifications
Brand Name :
Terui
Model Number :
BMA-KFB3
Certification :
RoHS
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
Standard export packaging
Description

RF Connector BMA Female Flange Mount .141 Cable BMA-KFB3

Type BMA is snap-on coupling miniature RF Coaxial Connector , which are specially designed for blind mate applications in low power microwave comunication system , military and civil data microwave communication system where high reliablity and easy assembly will be required .

Product Details

RF Connector BMA Female Flange Mount .141 Cable

Teruilai P/N: BMA-KFB3

RoHS Certificate: Compliant

Electrical data Requirments
Frequency range DC-18GHZ
Dieletric withstanding voltage 750V
Characteristic impedance 50Ω
Insulation Resistance ≧5000MΩ
VSWR 1.20:1
Mechanical data Requirments
Durability (matings) ≧500
Environmental data Requirments
Temperature range -40℃ to 85℃
Material data Requirments
Connector parts Material Plating
Body Brass Nickel plated
Pin contacts Brass Gold
Gasket Silicon rubber
Insulators Teflon
