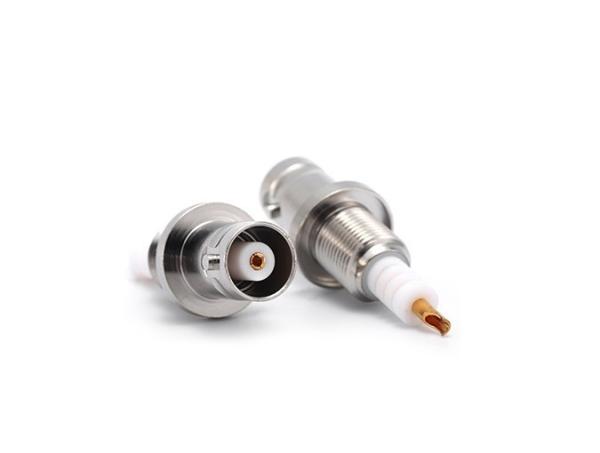

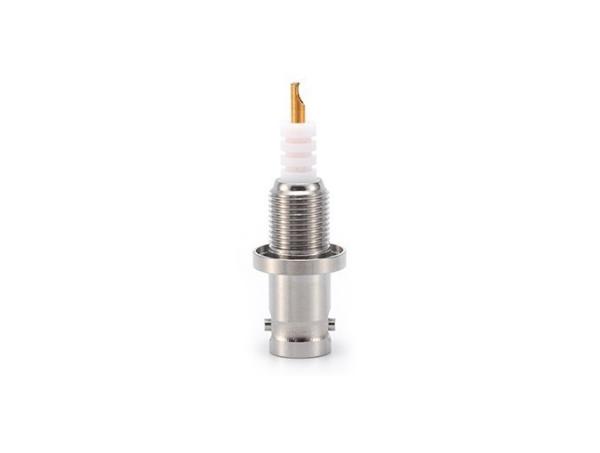

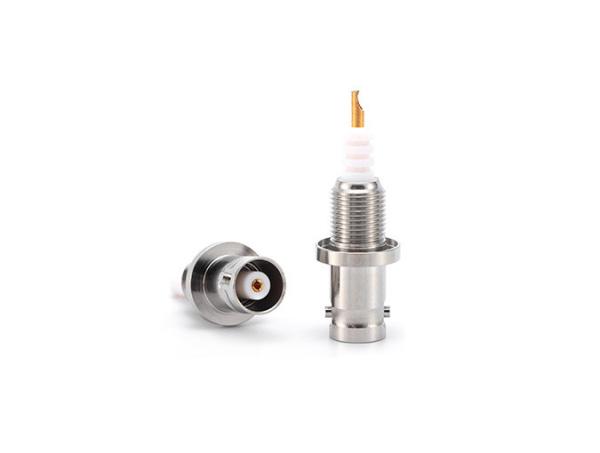

MHV Female bulkhead connector for Terminal
MHV Female bulkhead connector for Terminal
MHV Female bulkhead connector for Terminal
MHV Female bulkhead connector for Terminal
MHV Female bulkhead connector for Terminal
MHV Female bulkhead connector for Terminal
Specifications
Brand Name :
Terui
Model Number :
MHV-KYD1A
Certification :
RoHS
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
Standard export packaging
Description

MHV Female bulkhead connector for Terminal

MHV is a miniature high voltage connector,3500v (RMS) test high voltage (paired) in the pairing case,working voltage 1.6kv (RMS) and applicable to 300MHZ.

Product Details

MHV Female bulkhead connector for Terminal

Teruilai P/N: MHV-KYD1A

RoHS Certificate: Compliant

Electrical data Requirments
Frequency range DC-300Mhz
Dieletric withstanding voltage 5.0KV rms,50Hz(depending on cable)
Insulation Resistance ≧5GΩ
Characteristic impedance 50Ω
Contact resistance
Center conductor ≦2mΩ
Outer conductor ≦1mΩ
Mechanical data Requirments
Durability (matings) ≧500
Environmental data Requirments
Temperature range -65℃ to 165℃
Material data Requirments
Connector parts Material Plating
Body Brass Suco plated
Pin Contact Bronze Gold
Gaskets Silicone rubber
Insulators PTFE
