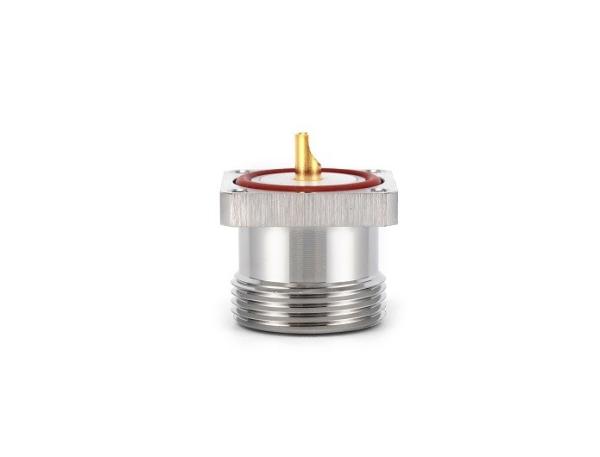

L29 /DIN RF Connector female 4 holes flange for terminal
L29 /DIN RF Connector female 4 holes flange for terminal
L29 /DIN RF Connector female 4 holes flange for terminal
L29 /DIN RF Connector female 4 holes flange for terminal
L29 /DIN RF Connector female 4 holes flange for terminal
L29 /DIN RF Connector female 4 holes flange for terminal
Specifications
Brand Name :
Terui
Model Number :
DIN-KFDT
Certification :
RoHS
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
Standard export packaging
Description

L29 /DIN RF Connector female 4 holes flange for terminal

TYPE L29 is a one kind of coaxial connector with screw-coupling mechanism.The connector is applicable from DC up to 7.5GHZ . The advantages has less attenutation, low intermodulation , big power and excellent nature of water-proof. They are widely used in communication systems and radio transceivers.

Product Details

L29 /DIN RF Connector female 4 holes flange for terminal

Teruilai P/N: DIN-KFDT

RoHS Certicate: Compliant

Electrical data Requirments
Frequency range 0-7.5GHZ
Characteristic impedance 50Ω
Insulation Resistance ≧10000MΩ
Contact Resistance
.Center conductor ≦1.5mΩ
.Outer conductor ≦0.2mΩ
VSWR ≦1.3
Mechanical data Requirments
Durability (matings) ≧500
Environmental data Requirments
Temperature range -45℃ to 125℃
Material data Requirments
Connector parts Material Plating
Body Brass Nickel
Pin contacts Beryllium-Copper gold-plated
Insulators Teflon
