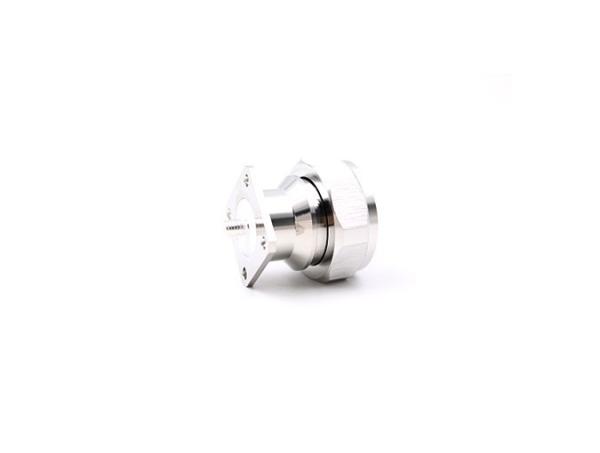

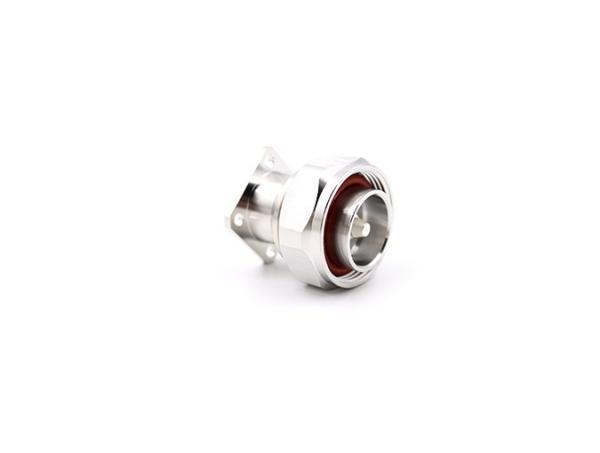

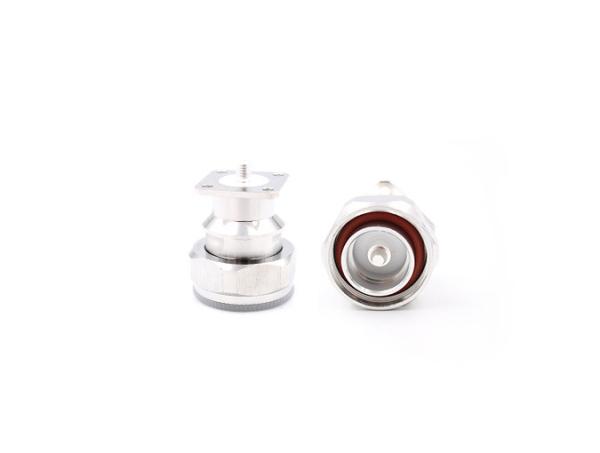

Din/L29 Male Flange Connector Receptacle L29-JFD62A
Din/L29 Male Flange Connector Receptacle L29-JFD62A
Din/L29 Male Flange Connector Receptacle L29-JFD62A
Din/L29 Male Flange Connector Receptacle L29-JFD62A
Din/L29 Male Flange Connector Receptacle L29-JFD62A
Din/L29 Male Flange Connector Receptacle L29-JFD62A
Specifications
Brand Name :
Terui
Model Number :
L29-JFD62A
Certification :
RoHS
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
Standard export packaging
Description

Din/L29 Male Flange Connector Receptacle L29-JFD62A

TYPE L29 is a one kind of coaxial connector with screw-coupling mechanism.The connector is applicable from DC up to 7.5GHZ . The advantages has less attenutation, low intermodulation , big power and excellent nature of water-proof. They are widely used in communication systems and radio transceivers.

Product Details

Din/L29 Male Flange Connector Receptacle

Teruilai P/N :L29-JFD62A

RoHS Certificate: Compliant

Electrical data Requirments
Frequency range 0-3GHZ
Characteristic impedance 50Ω
Insulation Resistance ≧10000MΩ
Dielectric withstanding voltage 4000V
VSWR 1.20:1
Mechanical data Requirments
Durability (matings) ≧500
Environmental data Requirments
Temperature range -45℃ to +85℃
Material data Requirments
Connector parts Material Plating
Body Brass Suco plated
Pin contact Bronze Silver plated
Gasket Silicon rubber
Coupling nut Brass Nickel plated
Insulators Teflon
