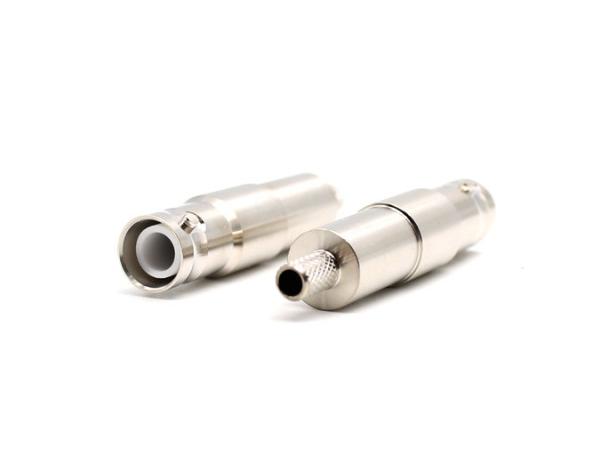

SHV male connector for RG58 Cable
SHV male connector for RG58 Cable
SHV male connector for RG58 Cable
SHV male connector for RG58 Cable
SHV male connector for RG58 Cable
SHV male connector for RG58 Cable
Specifications
Brand Name :
Terui
Model Number :
SHV-J5Y
Certification :
RoHS
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
Standard export packaging
Description

SHV male connector for RG58 Cable

Series SHV is coaxial high voltage connector with 3.5KV (RMS) or 5KV DC. The connector is widely used in nuclear devices and test equipment . Voltage is suitable for matching mated or unmatched conditions.

Product Details

SHV male connector for RG58 Cable

Teruilai P/N: SHV-J5Y

RoHS Certificate: Compliant

Electrical data Requirments
Frequency range DC-300Mhz
Dieletric withstanding voltage 5.0KV rms,50Hz(depending on cable)
Insulation Resistance ≧1TΩ
Characteristic impedance 50Ω
Contact resistance
Center conductor ≦2mΩ
Outer conductor ≦1.5mΩ
Mechanical data Requirments
Durability (matings) ≧500
Environmental data Requirments
Temperature range -65℃ to 165℃
Material data Requirments
Connector parts Material Plating
Body Brass Suco plated
Pin Contact Bronze Gold
Crimp ferrules copper Nickel
Insulators PTFE
