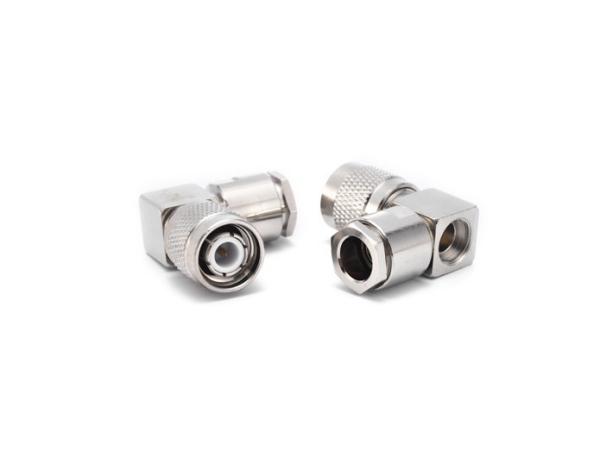

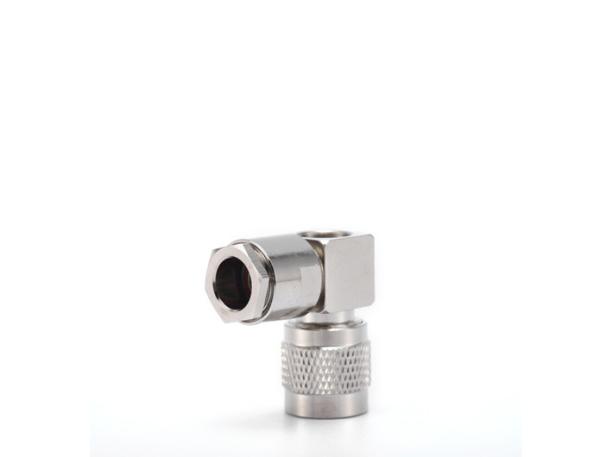

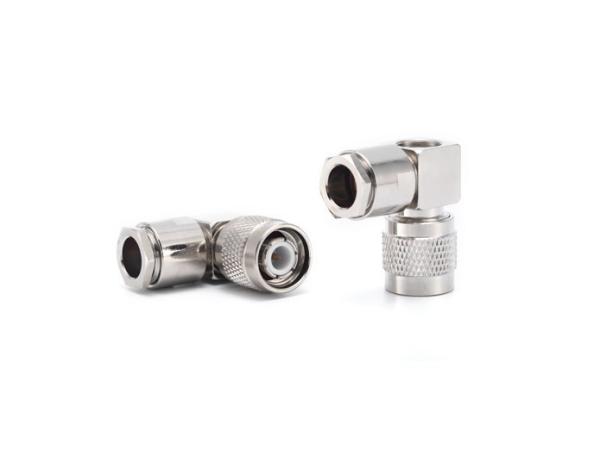

TNC Male Right Angle RF Coaxial Connector for LMR300 Cable Clamp TNC-JW300A
TNC Male Right Angle RF Coaxial Connector for LMR300 Cable Clamp TNC-JW300A
TNC Male Right Angle RF Coaxial Connector for LMR300 Cable Clamp TNC-JW300A
TNC Male Right Angle RF Coaxial Connector for LMR300 Cable Clamp TNC-JW300A
TNC Male Right Angle RF Coaxial Connector for LMR300 Cable Clamp TNC-JW300A
TNC Male Right Angle RF Coaxial Connector for LMR300 Cable Clamp TNC-JW300A
Specifications
Brand Name :
Terui
Model Number :
TNC-JW300A
Certification :
RoHS
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
Standard export packaging
Description

TNC Male Right Angle RF Coaxial Connector for LMR300 Cable Clamp TNC-JW300A

TYPE TNC is a middle-power coaxial connector, with screw-coupling mechanism.The connector is applicable from DC up to 11GHZ . It has two intermateable version of 50Ω and 95Ω. The advantages are high reliablity , vibration-proof , superior machanical and electrical performances.

Product Details

TNC Male Right Angle RF Coaxial Connector for LMR300 Cable Clamp

Teruilai P/N: TNC-JW300A

RoHS Certificate: Compliant

Electrical Requirments
Impedence 50Ω
Frequency range DC-3GHZ
Dieletric withstanding voltage 1500V(volts RMS)
Center contact resistance ≦1.5mΩ
Outer contact resistance ≦0.2mΩ
Insulation resistance ≧5000MΩ
Mechanical & Environmental Requirments
Temperature range -45℃ - 125℃
RoHs Compliant
Durability(matings) >500 cycles
Material & Finish Requirments
Connector parts Material Plating
Body Brass Nickel Plated
Insulators Teflon
Contact Pin Brass Gold Plated
Nut Brass Nickel Plated
Gasket Silicon Rubber(red)
Washer Brass Nickel Plated
