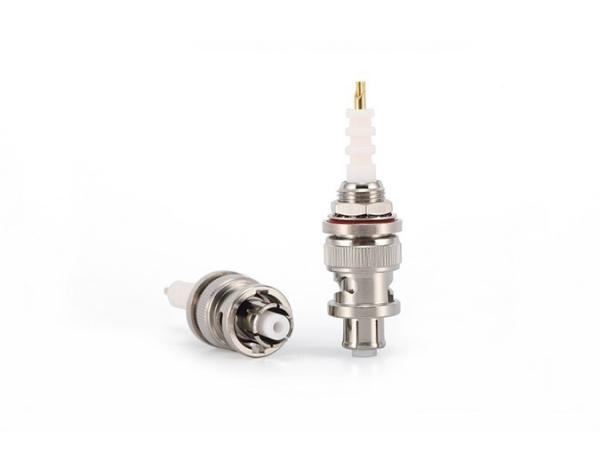

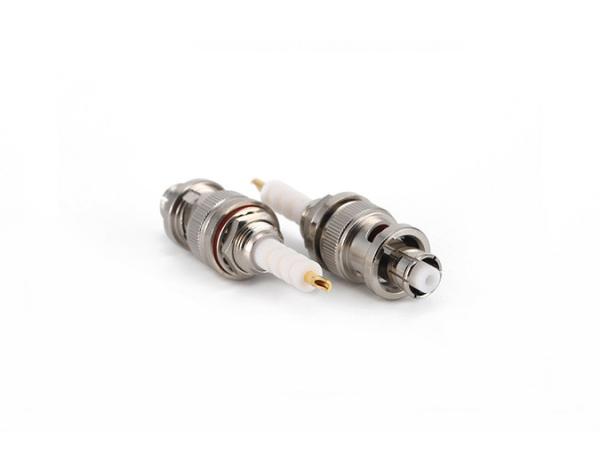

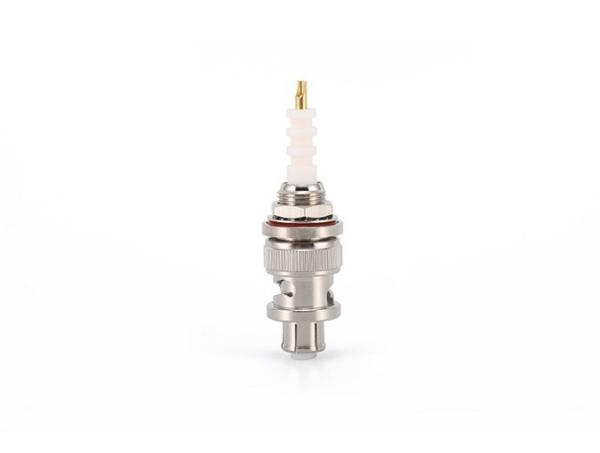

SHV Female Bulkhead RF Connector SHV-KYD1
SHV Female Bulkhead RF Connector SHV-KYD1
SHV Female Bulkhead RF Connector SHV-KYD1
SHV Female Bulkhead RF Connector SHV-KYD1
SHV Female Bulkhead RF Connector SHV-KYD1
SHV Female Bulkhead RF Connector SHV-KYD1
Specifications
Brand Name :
Terui
Model Number :
SHV-KYD1
Certification :
RoHS
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
Standard export packaging
Description

SHV Female Bulkhead RF Connector SHV-KYD1

Series SHV is coaxial high voltage connector with 3.5KV (RMS) or 5KV DC. The connector is widely used in nuclear devices and test equipment . Voltage is suitable for matching mated or unmatched conditions.

Product Details

SHV Female Bulkhead RF Connector

Teruilai P/N: SHV-KYD1

RoHS Certificate: Compliant

Electrical data Requirments
Frequency range DC-300Mhz
Dieletric withstanding voltage 5.0KV rms,50Hz(depending on cable)
Insulation Resistance ≧1TΩ
Characteristic impedance 50Ω
Contact resistance
Center conductor ≦2mΩ
Outer conductor ≦1.5mΩ
Mechanical data Requirments
Durability (matings) ≧500
Environmental data Requirments
Temperature range -65℃ to 165℃
Material data Requirments
Connector parts Material Plating
Body Brass Suco plated
Coupling nut Brass Suco plated
Pin Contact Bronze Gold
Insulators PTFE
