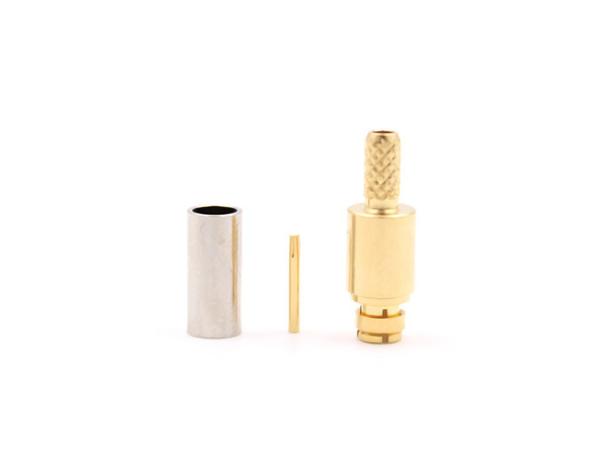

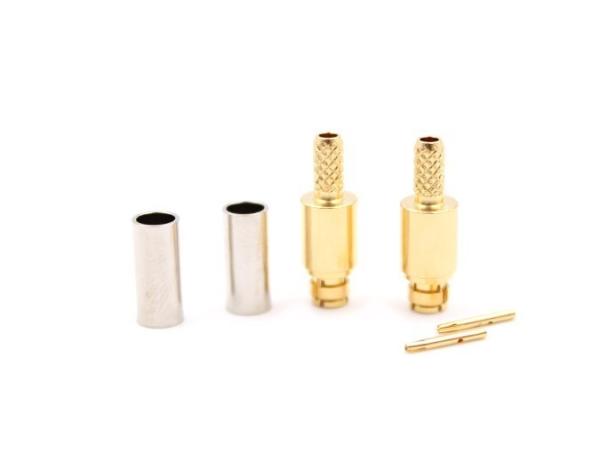

RF Connector SMP Female for RG316 Crimp
RF Connector SMP Female for RG316 Crimp
RF Connector SMP Female for RG316 Crimp
RF Connector SMP Female for RG316 Crimp
RF Connector SMP Female for RG316 Crimp
RF Connector SMP Female for RG316 Crimp
Specifications
Brand Name :
Terui
Model Number :
SMP-K3Y
Certification :
RoHS
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
Standard export packaging
Description

RF Connector SMP Female for RG316 Crimp

Type SMP is one kind of miniature RF coaxial connectors with snap-on self-latching mechanism, They are developed for modular interconnection system with denser packing requirements.The characteristic of this type is easy to connect/disconnet,light weight,vibration-proof, high frequency and high performance.

Product Details

SMP RF Connectors Female for RG316 Crimp

Teruilai P/N: SMP-K3Y

RoHS Certificate: Compliant

Electrical Requirments
Impedence 50Ω
Frequency range DC-6GHZ
Dieletric withstanding voltage 500V(volts RMS)
Insulation resistance ≧5000MΩ
Center contact resistance ≦3mΩ
Outer contact resistance ≦2mΩ
VSWR 1.25:1
Mechanical & Environmental Requirments
Temperature range -45℃ ~ 85℃
Material & Finish Requirments
Connector parts Material Plating
Body Brass Gold
Contact Pin Beryllium-copper Gold
Crimp Ferrules Brass Gold
Insulators Teflon
