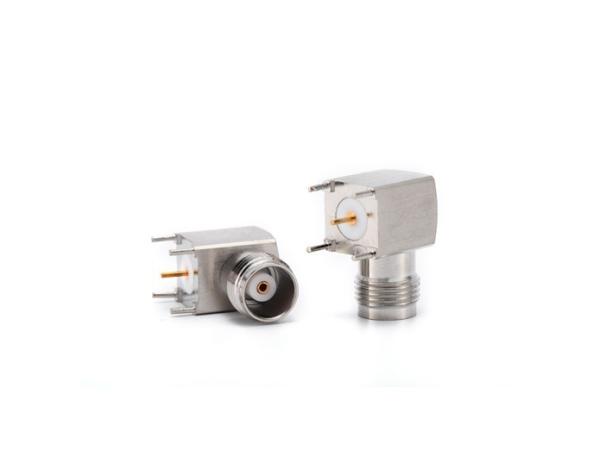

TNC Female Right Angle RF Coaxial Connector for PCB mount
TNC Female Right Angle RF Coaxial Connector for PCB mount
TNC Female Right Angle RF Coaxial Connector for PCB mount
TNC Female Right Angle RF Coaxial Connector for PCB mount
TNC Female Right Angle RF Coaxial Connector for PCB mount
TNC Female Right Angle RF Coaxial Connector for PCB mount
Specifications
Brand Name :
Terui
Model Number :
TNC-KWHD
Certification :
RoHS
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
Standard export packaging
Description

TNC Female Right Angle RF Coaxial Connector for PCB mount

TYPE TNC is a middle-power coaxial connector, with screw-coupling mechanism.The connector is applicable from DC up to 11GHZ . It has two intermateable version of 50Ω and 95Ω. The advantages are high reliablity , vibration-proof , superior machanical and electrical performances.

Product Details

TNC Female Right Angle RF Coaxial Connector for PCB mount

Teruilai P/N: TNC-KWHD

RoHS Certificate: Compliant

Electrical Requirments
Impedence 50Ω
Frequency range DC-6GHZ
Dieletric withstanding voltage 1500V(volts RMS)
Center contact resistance ≦1.5mΩ
Outer contact resistance ≦0.2mΩ
Insulation resistance ≧5000MΩ
Mechanical & Environmental Requirments
Temperature range -55℃ - 125℃
RoHs Compliant
Durability(matings) >500 cycles
Material & Finish Requirments
Connector parts Material Plating
Body Brass Nickel Plated
Insulators Teflon
Contact Pin Phosphor Bronze Gold Plated
Ferrule Coppe Nickel Plated
