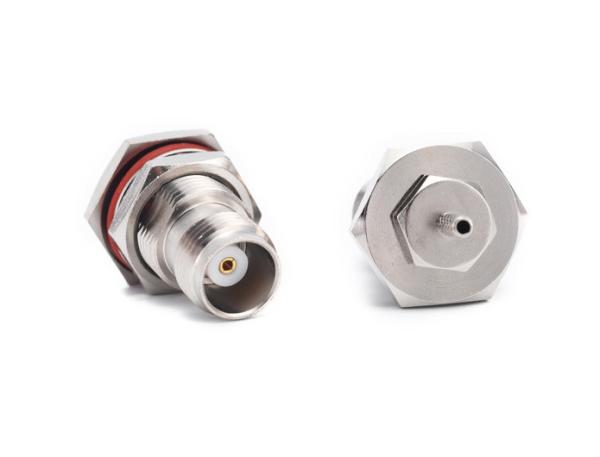

RF Connector TNC Female Bulkhead for RG316 cable, Crimp
RF Connector TNC Female Bulkhead for RG316 cable, Crimp
Specifications
Brand Name :
Terui
Model Number :
TNC-KY3CY
Certification :
RoHS
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
Standard export packaging
Description

RF Connector TNC Female Bulkhead for RG316 cable, Crimp

TYPE TNC is a middle-power coaxial connector, with screw-coupling mechanism.The connector is applicable from DC up to 11GHZ . It has two intermateable version of 50Ω and 95Ω. The advantages are high reliablity , vibration-proof , superior machanical and electrical performances.

Product Details

RF Connector TNC Female Bulkhead for RG316 cable, Crimp

Teruilai P/N: TNC-KY3CY

RoHS Certificate: Compliant

Electrical data Requirments
Frequency range DC-3GHZ
Dieletric withstanding voltage 1500V
Characteristic impedance 50Ω
Insulation Resistance ≧5000MΩ
Contact Resistance
.Center conductor ≦1.5mΩ
.Outer conductor ≦0.2mΩ
VSWR ≦1.3
Mechanical data Requirments
Durability (matings) ≧500
Environmental data Requirments
Temperature range -40℃ to 70℃
Material data Requirments
Connector parts Material Plating
Body Brass Nickel Plated
Pin contacts Bronze gold-plated
Insulators Teflon
Nut Brass Nickel Plated
Gasket Silicon rubber
Washer Brass Nickel Plated
