Specifications
Place of Origin :
Shanghai, China
Brand Name :
greenark
Model Number :
G2018-04-18
MOQ :
1
Price :
$3,000
Heating Method :
Electricial Tube And Induction
Material :
Stainless Steel 304
Shape :
Rectangle/circle/semi-circle/oval/fan shape/U shape/arch shape
Capacity :
10 SEATS
Grill Dimension :
2200*860*800mm
Heat Power :
8KW
Voltage :
380V/50Hz
Plate Thickness :
20mm
Electromagnetic Radiation :
18k-35k
Fume Efficiency :
93%-97%
Gas Consumption :
LPG 0.29m3/h(0.6kgs), pipeline gas 0.8m3/h
Dust Plate Tech :
High and low voltage separation
Circuit Layers :
6-layered heat resistant
Processing Unit :
32's DSP digital
Fume Particle Size :
Over 0.1 um
Description
Product Overview

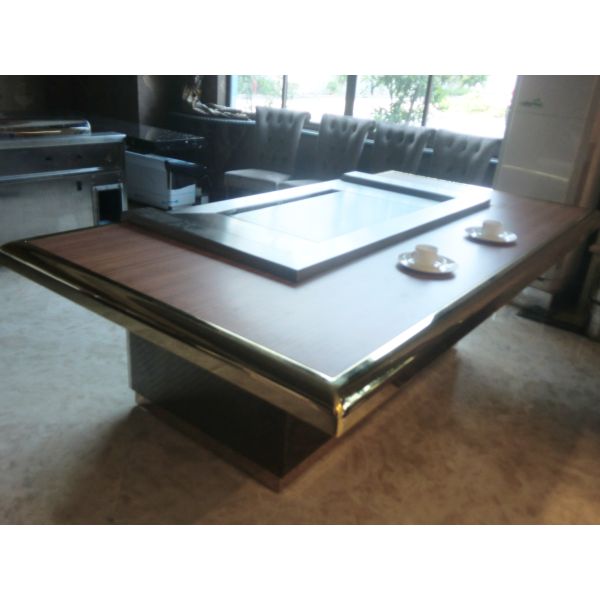

Gas teppanyaki grill/bbq grill accessory table/teppanyaki cooker 7-12 seats grill tablel

A piece of teppanyaki equipment consists of machine body, table decoration, fume purifier and air blower.The cooking plate is made of special alloy steel of 20mm thickness to avoid deformation and discoloration.The whole equipment is designed integrated to avoid further assembly or disassembly.
Non-standard equipment can be customized according to customers' requirement.
Japanese teppanyaki table
Material: stainless steel 304
Voltage: 380V/50Hz
Heat power: 8KW
Grill size: 2200*860*800mm
Optional: gas or electric type
Application: Outdoor barbecue, restaurant, hotel, food plazza, buffet car, etc.
Cookable Food : Beef, mutton, chicken, fish, shellfish, vegetable, rice, noodle, etc.
Can provide more shape: rectangle, circle, fan-shape, arch-shape and bridge-shape etc

*We support teppanyaki chefs to start their own business by exporting 1pc equipment.

FEATURES AT A GLANCE
Description
Advantages of Electromagnetic(Induction) Teppanyaki
a) The only self assembled electromagnetic plate and motor in China specially designed and developed for teppanyaki equipment;
b) With German Infinon power module and NEC rectifier;
c) The circuit board material is in conformity with UL and ROHS certification, the master chip is with imported 32's DSP digital
processing unit, and the 6-layered heat resistant insulative material makes the motor work for a much longer time;
d) Electromagnetic radiation is only 18k-35k, which is much lower than the European standard limit of 100k.
Advantages of Built-in Taiwan Electrostatic Fume Purifier
a) Absorbing fume particles with diameter of over 0.1 um (diameter) with processing efficiency of 93%-97%;
b) High and low voltage dust collecting plate separation technology, easy for cleaning;
c) Advanced point discharging technology;
d) Power-off protection device for output disorder.

Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No
Item
Data
1
Heating
Electricial Tube And Induction
2
Material
Stainless Steel
3
Shape
Rectangle/circle/semi-circle/oval/fan shape/U shape/arch shape
4
Capacity
10 seats
5
Exhaustion
Optional built-in air blower & fume purifier
6
Application
Outdoor barbecue, restaurant, hotel, food plazza, buffet car
7
Cookable Food
Beef, mutton, chicken, fish, shellfish, vegetable, rice, noodle
8
Packaging
Standard Shipping Wooden Case
PRODUCT CONFIGURATION
U-shape
oval shape
semi-circle/ shape
SALES AND SERVICE NETWORK
Successful Project
Project in Thailand
Project in India
Project in Russia
SIMILAR PRODUCTS
FAQ
Q1:Why choose Chuanglv GREENARK Teppanyaki?
A1:A.Grill body made of German 304 stainless steel, heating plate made of special alloy steel with thickness of 20 mm, one-piece unibody, no deformation or discoloration after long time use. B.Operation panel, waste container and filter made of 1.0 mm stainless steal, and the air inlet made of 1.5 mm mirror surface stainless steal. C.Amazing caraft of cutting, bending and polishing by imported intelligent processing machines.D.Electromagnetic(Induction)Teppanyaki: 1)The only manufacturer in China who specially designed and assembles electromagnetic plate and motor forteppanyaki equipment; 2) German Infinon power module and NEC rectifier; 3)The circuit board material is in conformity with UL and ROHS certification, the master chip is with imported 32'sDSP digital processing unit, and the 6-layered heat resistant insulative material makes the motor work for a much longertime; 4) Electromagnetic radiation is only 18k-35k, which is much lower than the European standard limit of 100k.E. Gas Teppanyaki: 1) Gas consumption: LPG 0.29m3/h(0.6kgs), pipeline gas 0.8m3/h. 2) Thermostat control, automatic electronic ignition device, automatic flame failure protection device.F. Built-in Air Blower:. High temperature resistant; low noise. G. Built-in Taiwan Electrostatic Fume Purifier. 1) Absorbing fume particles with diameter of over 0.1 um (diameter) with processing efficiency of 93%-97%;2) High and low voltage dust collecting plate separation technology, easy for cleaning; 3)Advanced point discharging technology; 4) Power-off protection device for output disorder. H. Certification: ISO 9001-2008;CE; CSA & UL certification in process.
