Specifications
Brand Name :
Yashang
Model Number :
ET20
Certification :
ISO, CE, TUV, COC, SONCAP etc.
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, L/C, West Union, MoneyGram
Supply Ability :
5000~10000sqm per month
Packaging Details :
membrane film, PVC bags, steel cages
Frame :
6061/T6 Hard Pressed Extruded Aluminum Alloy
Cover :
850gsm Double PVC-coated Polyester Textile
Connector :
Hot Dipped Galvanized Steel
Wall :
Soft PVC Wall
Tent Size :
8 x 24M
Application :
Outdoor Exhibition and Events
Description

Outdoor UV Resistant 850gsm White PVC Fabric Cover Car Exhibition Tent

The aluminum frame tent is widely used in weddings, parties, events, ceremonies, displays, exhibitions and so on. The aluminum tent is fast to assemble and also easy to disassemble. The tent consists of sturdy aluminum alloy which make the frame of the tent structure safe and stable. And the tent is enclosed by the white fabric which can protect the aluminum alloy from rain and sun and make the tent endurable.

Please contact with us directly to learn about the detailed specification of different tent projects, because the data in the form may not be updated in time.

Tent Size: 8m x 24m Tent Materials: Hard extruded aluminum alloy (framework)
Span Width: 8m Polyester textile fabric cover (top and wall)
Side Height: 2.6m Galvanized steel (connecting parts)
Top Height: 4m Tent Configurations: Aluminum framework
Bay Distance: 3m Fabric roof cover
Longest Part: 4.25m Fabric wall
Roof Pitch: 20° Glass door with canopy
Main Profile: 84 x 48 x 3mm Decorative lining system
Gable Post Profile: 84 x 48 x 3mm Energy-saving lighting system
Purlin Profile: 40 x 40 x 2mm Tent Packaging: Membrane film for long aluminum parts
Hang Tube Profile: 40 x 56 x 2mm PVC bags for fabric parts
Snow Load: 0.1kN/m² Steel cages for steel parts
Wind Load: 0.3kN/m² Tent Fixing Solution: Expansion screws for concrete ground (standard)
Tent Gross Weight: 1230kgs Steel peg nails for soft grass/sand land (optional)
Tent Total Volume: 3.5cbm Load Plate for undamagable ground (optional)
Setup Time: 8 people 1 day Installation Support: Installation instructional manual & video
Tent HS code:

6306220090

On-site installation guide
Tent Lifespan: Aluminum part ≥ 25~30 years Factory installation training
PVC fabri ≥ 5~8years Free Tools Configured: Y-pole, Spanner, Ropes, Hammers, Ladders

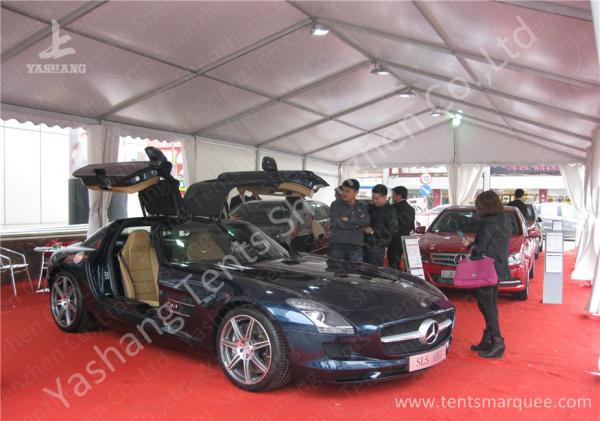

The outdoor car exhibition tent is for Mercedes-Benz, whose distributor in Shantou, a coastal city in the eastsouth of China, is Shantou Junrong. The size of the exhibition tent is 8m x 24m with a total utilization ratio. The polyester textle fabric curtains also enable to enlarge the interior space version. The floor is covered with a red carpet to beautify the interior environment.
Outdoor UV Resistant 850gsm White PVC Fabric Cover Car Exhibition Tent

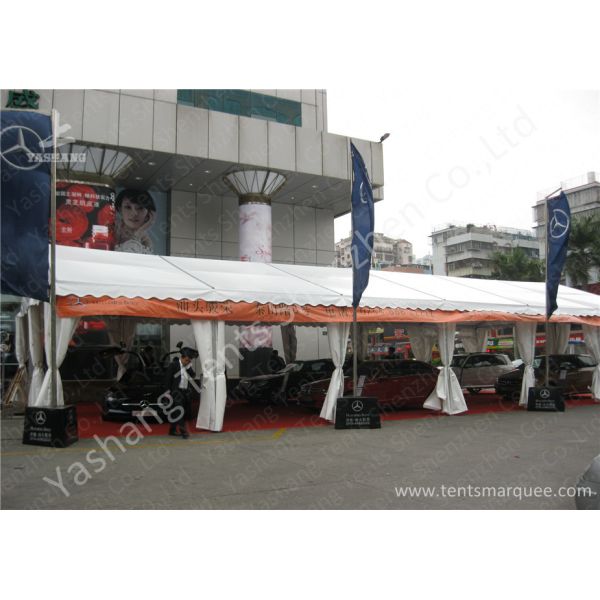

As for the outer appearance, the orange banner is hanged on the top of the curtain with the logo about Merdez-Benz and the informotion about Shantou Junrong, whose bright color stand out from the surroundings. To attract the potential consumers, the blue flags with car logo is set up in front of the tent. By the way, any tent design is custom according to your demand. In this project, the ground is not allowed to be damaged, so the load plates with concrete brick is fixed into the ground to ensure the stability and safety of the exhibition tent.


Outdoor UV Resistant 850gsm White PVC Fabric Cover Car Exhibition Tent

Do you have large enough venue to hold a big car exhibition? No? Now come here!
Yashang will provide good quality tent products to you. Please contact us for any other information about our aluminum tents.
