Specifications
Brand Name :
Yashang
Model Number :
ET21
Certification :
ISO, CE, TUV, COC, SONCAP etc.
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, L/C, West Union, MoneyGram
Supply Ability :
5000~10000sqm per month
Packaging Details :
membrane film, PVC bags, steel cages
Frame :
6061/T6 Hard Pressed Extruded Aluminum Alloy
Cover :
Double PVC-coated Polyester Textile
Connector :
Hot Dipped Galvanized Steel
Wall :
Soft PVC Wall
Tent Size :
6 x 42M
Application :
Outdoor Exhibition and Events
Description

6x42M Outdoor UV Resistant Hard Pressed Extruded Aluminum Car Exhibition Tent

This is a fabric cover tent which is 6m wide and 42m long. The tent contains hard pressed aluminum alloy 6061/T6 frame which can last for more than 20 years with 100% waterproof double layer coated polyester textile. The aluminum alloy frame is to keep the tent stable and reliable, and the fabric cover is to keep from the rain and ultraviolet ray. The fabric is also fire retardant, so you don't need to worry about the potential damage brought by fires.

Please contact with us directly to learn about the detailed specification of different tent projects, because the data in the form may not be updated in time.

Tent Size: 6m x 42m Tent Materials: Hard extruded aluminum alloy (framework)
Span Width: 6m Polyester textile fabric cover (top and wall)
Side Height: 2.6m Galvanized steel (connecting parts)
Top Height: 3.7m Tent Configurations: Aluminum framework
Bay Distance: 3m Fabric roof cover
Longest Part: 3.7m Fabric wall
Roof Pitch: 20° Glass door with canopy
Main Profile: 84 x 48 x 3mm Decorative lining system
Gable Post Profile: 84 x 48 x 3mm Energy-saving lighting system
Purlin Profile: 40 x 40 x 2mm Tent Packaging: Membrane film for long aluminum parts
Hang Tube Profile: 40 x 56 x 2mm PVC bags for fabric parts
Snow Load: 0.1kN/m² Steel cages for steel parts
Wind Load: 0.3kN/m² Tent Fixing Solution: Expansion screws for concrete ground (standard)
Tent Gross Weight: 1800kgs Steel peg nails for soft grass/sand land (optional)
Tent Total Volume: 5cbm Load Plate for undamagable ground (optional)
Setup Time: 8 people 1~2 days Installation Support: Installation instructional manual & video
Tent HS code:

6306220090

On-site installation guide
Tent Lifespan: Aluminum part ≥ 25~30 years Factory installation training
PVC fabri ≥ 5~8years Free Tools Configured: Y-pole, Spanner, Ropes, Hammers, Ladders

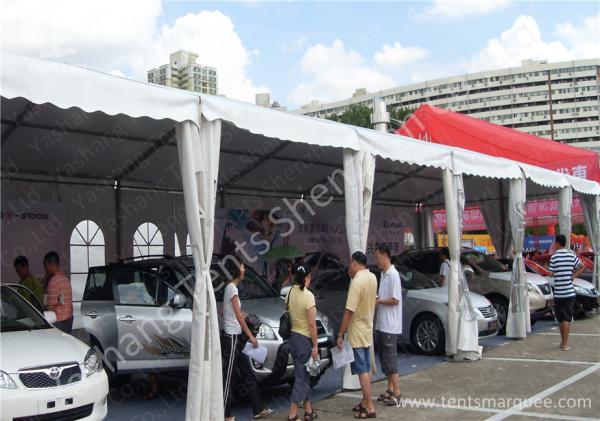

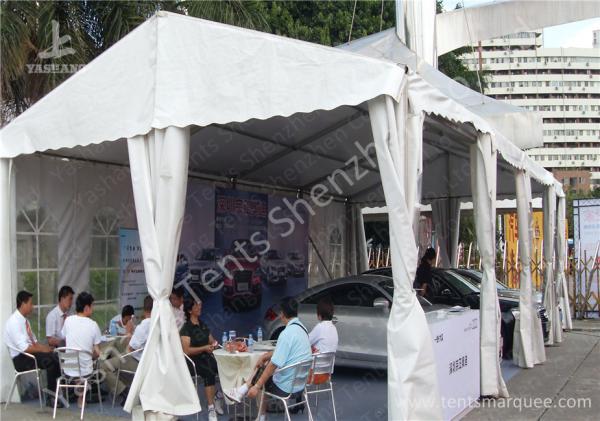

The tent structure is always made of aluminum alloy frame, fabric cover and wall cover. In this car show tent project, there is no fabric wall, allowing people to move in and out easily. Besides, because tents are modular structures, they can be united and enlarged to a scale according to your need. Also, to seperate the tent into different function areas, curtains can be hung on the gable hang tube. Of course, if you change your idea and want to combine the areas, it's also convenient to enlarge the areas by rolling up the curtains.
6x42M Outdoor UV Resistant Hard Pressed Extruded Aluminum Car Exhibition Tent

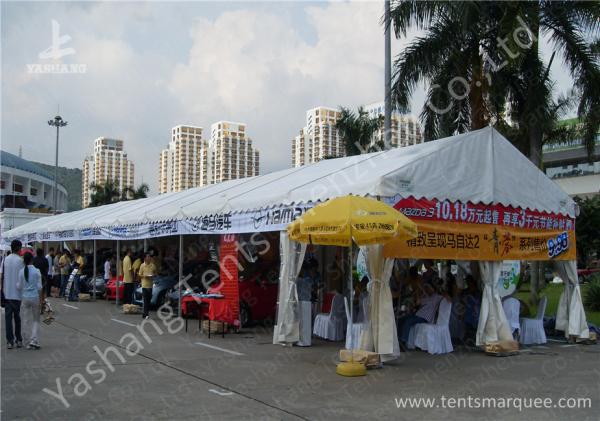

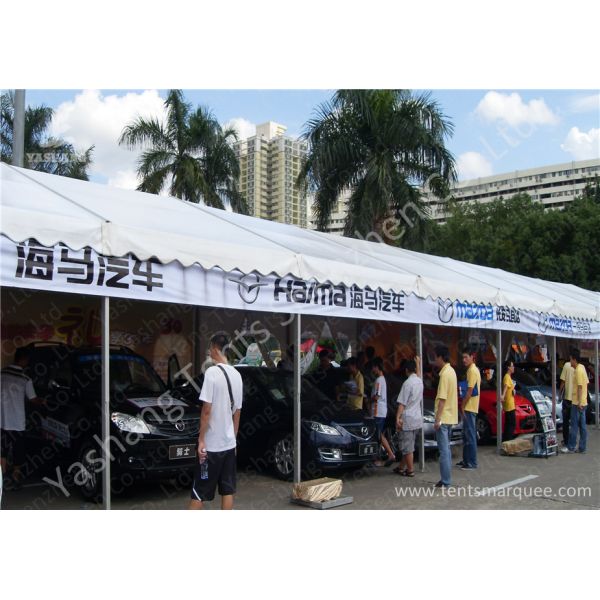

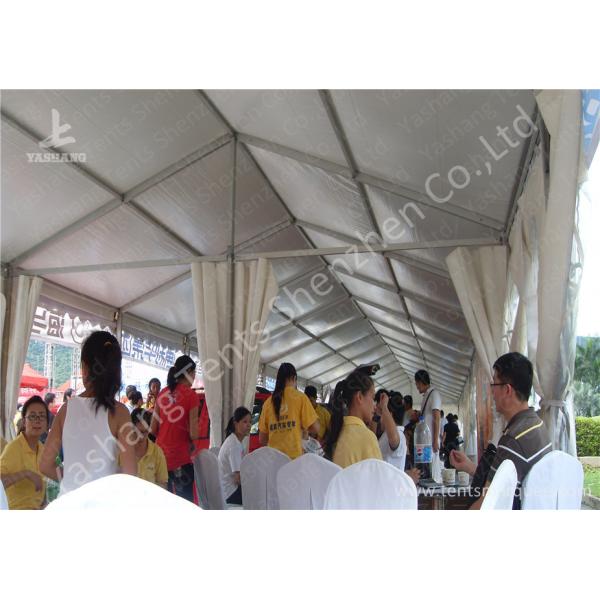

The marquee exhibition tent within the span of 50 meters has no extra pillars, with 100% utilization rate. Besides, the temporary tent has semi-permanent charactristic, which can be assembled and dismantled so that it's easy to move frome one place to another. In this way, you can save the venue cost because you can store it until you need it next time. In this marquee, the load plate with heavy brick covered in wax yellow the same color as the curtain is fixed on the concrete ground.
6x42M Outdoor UV Resistant Hard Pressed Extruded Aluminum Car Exhibition Tent
Drawing on more than 12 years in designing and manufacturing aluminum tents, Yashang tents are made in China with quality performance materials. For the quality of our tent structures, you need not worry about it because we have professional technical team and loyal sales team.
Contact us now to know more about tent structures...
