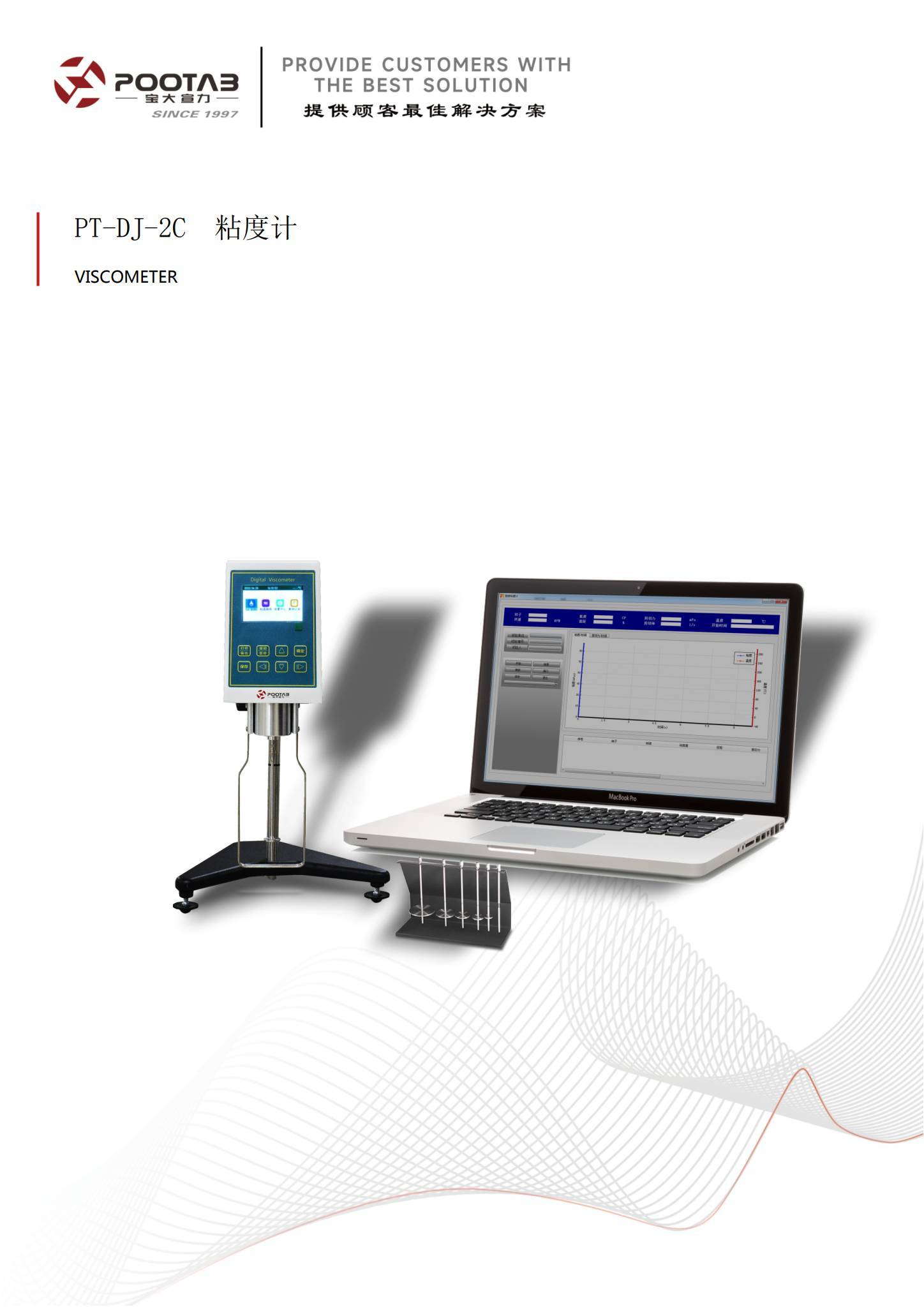

PT-DJ-2C Viscometer
PT-DJ-2C Viscometer
PT-DJ-2C Viscometer
PT-DJ-2C Viscometer
Specifications
Model Number :
PT-DJ-2C Viscometer
MOQ :
Negotialble
Timed Measurement Function :
Available
Payment Terms :
Negotialble
Operation Interface :
Chinese / English
Brand Name :
Pootab
Model :
PT-DJ-2C Viscometer
Place of Origin :
Guangdong
Price :
Negotialble
Packaging Details :
Negotialble
Measuring Range :
1 ~ 1×10⁵ mPa·s
Certification :
CE / IS09001
Description

Main technical specifications:

Item Parameter
Model PT-DJ-2C
Measuring Range (mPa·s) 4 ~ 40,000,000
Rotational Speed (rpm) 0.1 ~ 200 (stepless speed regulation)
Rotor Configuration 1 piece each for Rotors No.2 to No.7
Measurement Error ±1% FS (Newtonian liquids)
Repeatability ±0.2% FS (Newtonian liquids)
Power Supply Dedicated power adapter (Input: 100~240V, 50~60Hz)
Display Functions LCD screen displays viscosity, shear rate, shear stress, rotational speed, temperature, percentage torque, rotor number, and the maximum measurable viscosity of the selected rotor at current speed, etc.
Optional Accessories Dedicated viscometer constant temperature bath, ultra-low viscosity adapter, standard viscosity liquid, mini printer, small sample adapter, ultra-micro 2.1ml adapter, temperature control device KDC-1WB

Features

  • Color screen with a clean and intuitive operation interface, easy for new users to operate.
  • Metal housing with strong anti-interference performance, different from plastic housings used by competitors.
  • Equipped with PT100 high-precision temperature sensor.
  • High-speed chip processor for faster data processing.
  • Adopts high-strength spindle for long service life and durability.
  • Built-in RS232 print interface, which can be directly connected to a computer or mini printer for data printing.
  • Timing function for automatic measurement of non-Newtonian fluids, ensuring good repeatability of test data.
  • Supports viscosity curve display, real-time viscosity, temperature and other parameters.
  • Auto-range display: shows the maximum measurable viscosity under the current rotor and speed combination.
  • Data storage function for convenient data review and comparison.

Application

The PT-DJ-2C Viscometer is equipped with a high-definition color screen and high-performance processor, featuring easy operation and abundant displayed information. The instrument adopts an all-metal housing for effective anti-interference performance. Fitted with a PT100 temperature sensor, it offers optional computer control and automatic data acquisition functions to better meet diverse customer requirements.

It is widely applied for inks, adhesives, latex, solvent-based adhesives, paints & coatings, petroleum, cosmetics, dairy products,, fruit juice, pastes, solder paste, red glue and more.
