Computerized 100mm/Min 2KN Tension Test Machine
Computerized 100mm/Min 2KN Tension Test Machine
Computerized 100mm/Min 2KN Tension Test Machine
Computerized 100mm/Min 2KN Tension Test Machine
Specifications
Brand Name :
POOTAB
Model Number :
PT-1170B
Certification :
ISO,CE,SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
250 Sets Per Month
Delivery Time :
7 Working Days After Order Confirmed
Packaging Details :
Wooden Case Or As Client's Instruction
Machine Name :
Computerized Tensile Testing Machine
Machine Type :
Single Arm Type
Test Travel :
850mm
Operating Mode :
Computer Controlled
Testing Speed :
1～500mm/min
Force Measure Accuracy :
±1.0%
Description

Computerized Tensile Testing Machine Tension Stretch Test 2KN

Machine Description:

Computerized Tensile Testing Machine Tension Stretch Test 2KN, is a computer controlling tensile tester to test the mechanical properties of , metal and non-metal, polymer materials, such as stretching, peeling, compression, tearing, shearing, bursting, tension, puncture, fatigue, weld strength,stretch etc.2KN tensile strength tester is widely used in material inspection and analysis in factories, laboratories, hardware accessories, quality supervision, aerospace, machinery manufacturing, wires and cables, rubber and plastics, textiles, construction materials, home appliances and other industries.

Meet Standards:

ISO 7500-1 ,ASTM E4 , ASTM D-76, DIN5122 , JIS B7721/B7733 , EN 1002-2, BS1610,GB T228

2KN Tensile Testing Machine Specifications :

Model Name PT-1170B Computerized Tensile Testing Machine Tension Stretch Test 2KN
Force Sensor

20N,50N,100N,200N,500N,1000N,2000N,5000N, one option
Display force and extension display
Software Professional testing software for WIN system
Force Measure Accuracy ±1.0%
Force Measure Resolution 1/10,000
Effective Measure Range 1~100%F.S
Deformation Indication Accuracy ±1.0%
Test Speed 1～500mm/min
Test Travel 850mm,exclude grip length
Test Space Front and back 120mm,right left no limit
Force Unit kgf,gf ,N,kN,Ibf
Stress Unit MPa,kPa,kgf/cm2,Ibf/in2
Deformation Unit mm,cm,in
Stop Method Upper and lower limit safety setting, emergency stop button, program force and elongation setting, test piece damage sensing
Snap Point Method Manually take points during the test and pre-set take points (20 points)
Standard Configurations 1 pair of grip, 1 micro printer, professional software 1 power cord, 1 operation manual, 1 product certificate, 1 product warranty card
Size About 57×47×120cm(W×D×H)
Weight About 55kg
Motor Stepper
Power Supply 1phase,AC 220V,50/60Hz,or as requirement

Noted: the machine usually not including computer, customer could install our software on their PC, or choose to buy it separately.

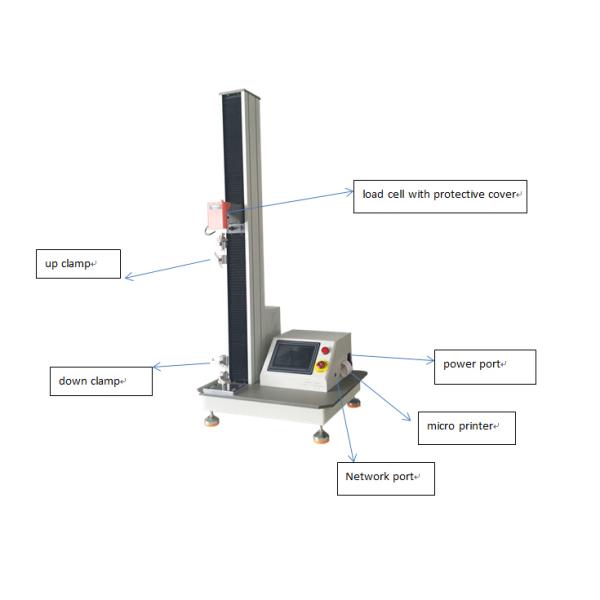

Computerized Tensile Testing Machine Picture :

Computerized 100mm/Min 2KN Tension Test Machine
