Dc12v / 24v / 220v / 380v Mini Lifting Crane 500kg 800kg 1000kg
Dc12v / 24v / 220v / 380v Mini Lifting Crane 500kg 800kg 1000kg
Dc12v / 24v / 220v / 380v Mini Lifting Crane 500kg 800kg 1000kg
Dc12v / 24v / 220v / 380v Mini Lifting Crane 500kg 800kg 1000kg
Specifications
Model Number :
HP500, HP1000
Place of Origin :
HEBEI ,CHINA
MOQ :
1 SET
Price :
$70.00 - $430.00/ Piece
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
3000 pcs / month
Delivery Time :
5`10 working days, which will be adjusted according to different products and inventory
Packaging Details :
Standard Export Wooden Case
Rated Loading Capacity :
500-1000KG
Max. Lifting Height :
10m
Span :
1-1.7M
Core Components :
Motor, Bearing
Power Source :
electric
Sling type :
wire rope
Power :
12V/24V/220V/380V, as your requirement
Description

DC12V/24V/220V/380V 500kg 800kg 1000kg Small Lift Truck Crane Mini Pickup Hydraulic Truck Crane

SPECIFICATION OF TRUCK MINI CRANE

Single line Lifting Capacity (Max) 500kg Double line Capacity (Max) 800kg
Lifting Height Max.Std.(base to hook) 1940mm Reach Max.(from center of rotation) 1490mm
Rotation (continuous) with Brake 360° Manual Lifting Cable 4.8mm x 6.5m –1pc(for single-line lifting)
Line speed with No Load 3.6m/min single line Power Requirements 12V 24V DC
Switch Cable 4.2m Mounting Base 250x250x18mms
Mounting Bolt Hole Pattern 170x170mms Finish Powder Coated
Electric winch model P3000lbs Net Weight of Crane 55.5KGS
Color available Yellow,red and black

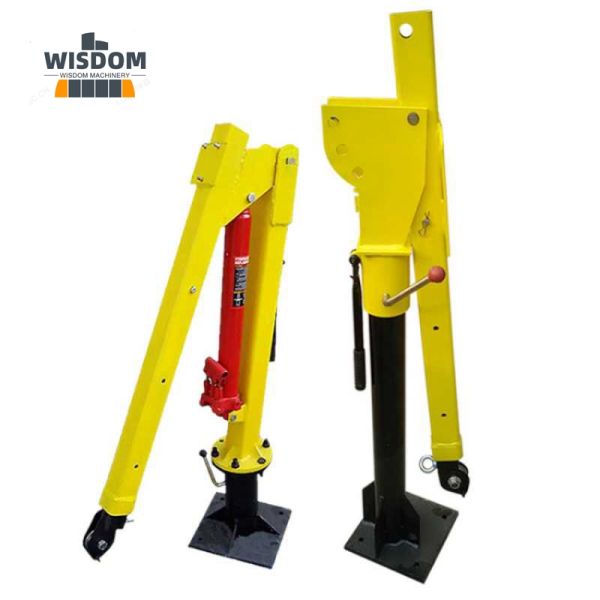

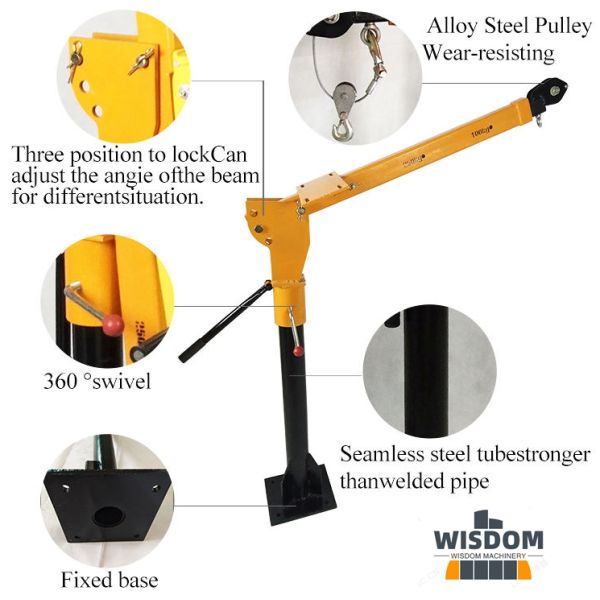

PICTURES OF TRUCK MINI CRANE

Dc12v / 24v / 220v / 380v Mini Lifting Crane 500kg 800kg 1000kg

Dc12v / 24v / 220v / 380v Mini Lifting Crane 500kg 800kg 1000kgDc12v / 24v / 220v / 380v Mini Lifting Crane 500kg 800kg 1000kgDc12v / 24v / 220v / 380v Mini Lifting Crane 500kg 800kg 1000kgDc12v / 24v / 220v / 380v Mini Lifting Crane 500kg 800kg 1000kg
