415v Gondola Suspended Platform Zlp630 Zlp800 Zlp1000 Steel Construction
415v Gondola Suspended Platform Zlp630 Zlp800 Zlp1000 Steel Construction
415v Gondola Suspended Platform Zlp630 Zlp800 Zlp1000 Steel Construction
415v Gondola Suspended Platform Zlp630 Zlp800 Zlp1000 Steel Construction
Specifications
Model Number :
ZLP630/ ZLP800 / ZLP1000
Certification :
CE ISO
Place of Origin :
HEBEI ,CHINA
MOQ :
1 SET
Price :
1700~2500 USD/SET
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200 SETS / MONTH
Delivery Time :
5`10 working days, which will be adjusted according to different products and inventory
Packaging Details :
LCL : GOODS WILL BE PACKAGED BY PLYWOOD BOX ; CONTAINER DELIVERY : GOODS WILL BE PACKAGED BY PALLET
Material :
Painted steel / Hot galvanized steel / Aluminum Alloy
Size of suspended platform :
2m ~ 10m
Working Height :
100m Max :200m
Power :
1.5KW/1.8KW/2.2KW
Voltage :
220v /380v/ 415v 50/60hz
Loading Capacity :
630kg / 800kg / 1000kg
Warranty :
12 months
Description

ZLP630&ZLP800&ZLP1000 construction suspended platform cradle & gondola

Introduction of Suspended plaform / Gondola

Compared with traditional scaffolding, suspended platform is scientific in design, rational in structure. It is convenient to operate, safe and reliable, and high efficiency. It is widely used for exterior construction of high-rise building, bridge construction, chimney construction, window cleaning, inspection and maintenance, curtain wall installation and facade decoration and so on.

Technical Parameters of Suspended platform / Gondola

Model ZLP500 ZLP630 ZLP800 ZLP1000
Height 100M/150M
Rated Load(KG) 500KG 630KG 800KG 1000KG
Lifting Speed 9.6m/min 9.6m/min 8.6m/min 8.6m/min
Motor Power(kw) 2*1.5 2*1.5 2*1.8 2*2.2
Material Steel or Aluminum Alloy
Surface Treatment Painted or Hot Galvanized
L*W*H(mm) (2000*2)*690*1300 (2000*3)*690*1300 (2500*3)*690*1300 (2500*3)*690*1300
Diameter of Steel Rope 8.3mm 8.3mm 8.6mm 9.1mm
Safety Lock LS30 LS30 LS30 LS30
Hoist Model LTD63 LTD63 LTD80 LTD80S
Voltage 220V/380V/415V 220V/380V/415V 220V/380V/415V 220V/380V/415V
Counter weight(kg) optional 25×30pcs 25×36pcs 25×40pcs 25×44pcs

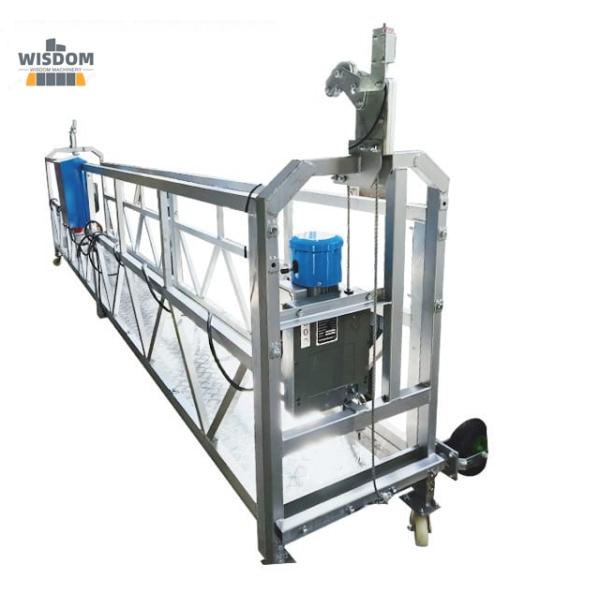

Pictures of Suspended platform / Gondola

415v Gondola Suspended Platform Zlp630 Zlp800 Zlp1000 Steel Construction415v Gondola Suspended Platform Zlp630 Zlp800 Zlp1000 Steel Construction

415v Gondola Suspended Platform Zlp630 Zlp800 Zlp1000 Steel Construction
