6m / 7.5m 380v Suspended Working Platform Cradle Hanging Gondola Lift
6m / 7.5m 380v Suspended Working Platform Cradle Hanging Gondola Lift
6m / 7.5m 380v Suspended Working Platform Cradle Hanging Gondola Lift
6m / 7.5m 380v Suspended Working Platform Cradle Hanging Gondola Lift
Specifications
Model Number :
ZLP630/ZLP800
Place of Origin :
HEBEI ,CHINA
MOQ :
1 SET
Price :
1900~2700 usd/set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200 SETS / MONTH
Delivery Time :
5`10 working days, which will be adjusted according to different products and inventory
Packaging Details :
LCL : GOODS WILL BE PACKAGED BY PLYWOOD BOX ; CONTAINER DELIVERY : GOODS WILL BE PACKAGED BY PALLET
Model of Rope Suspended Platform :
ZLP630/ZLP800
Material of Rope Suspended Platform :
Steel / Aluminum
Length of Rope Suspended Platform :
6m / 7.5m
Lifting Height of Rope Suspended Platform :
Max 200m
Power :
1.5kw / 1.8kw
Voltage :
220v /380v/ 415v 50/60hz
Usage of Rope Suspended Platform :
High rise building painting , maintenance
Description

6M/7.5M Cradle Hanging Gondola Lift Suspended Working Platform

Introduction of Rope Suspended Platform

ZLP series electric gondola is a new type of high-altitude operation equipment that can replace traditional scaffolding, reduce labor intensity, improve work efficiency, and can be reused. It has been used in high-rise buildings such as exterior wall painting, curtain wall installation, maintenance and cleaning. Widely used in homework. The construction cost is only 30% of the traditional scaffolding.

●Safe and practical, flexible assembly, easy operation and performance

●Multiple safety protection measures: automatic anti-tilting, emergency stop device, speed limit protection, upper limit protection, manual release, etc.

●The appearance processing methods of the hanging basket structural parts are hot-dip galvanized, cold-dip galvanized and plastic sprayed for users to choose

●Unique design and manufacturing process to ensure longer service life, stable and reliable performance

Parameters of Rope Suspended Platform

Parameters of ZLP series electric suspended platform
ZLP630 ZLP800
Material & Surface treatment Hot-dip Galvanized steel , Powder Spraying Steel , Aluminum
Rated Load 630KGS 800KGS
Dimension L*W*G(mm) (2000*3)*690*1180 (2500*3)*690*1180
LTD Hoist *2
Hoist Model LTD63 LTD80
Motor Type YEJ90L-4 YEJ90L-4
Power 1.5kw 1.8kw
Break Torque 15N.M 16N.M
Lifting Speed 9.3±0.5m/min 8.3±0.5m/min
Max Lifting height 200m 200m
Safety Lock LS30*2
Material Dacromet shell , Stainless steel lock core
Allowable Impact 30KN 30KN
Angle adjustment 3°~8° 3°~8°
Electric Control Panel*1 Galvanized steel / painted shell CHINT/SCHNEIDER components
Wire Rope *4 8.3mm 8.6mm/9.1mm
Cable*1 3*2.0+2*1.0YC-5

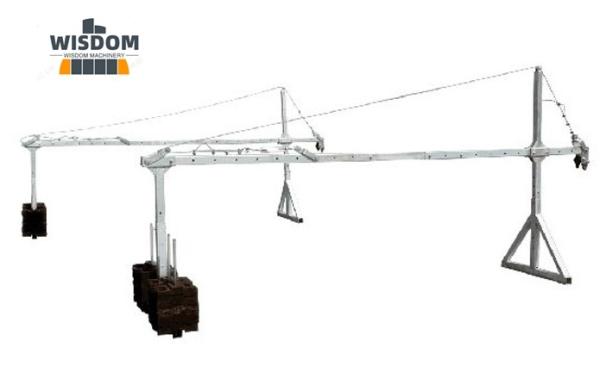

Suspension Mechanism*2 Front beam overhang: 1.3-1.5m ; Front beam height:1.1-1.6m
Counterweight 25KG/pc 1000KGS 1000KGS

Pictures of Rope Suspended Platform

6m / 7.5m 380v Suspended Working Platform Cradle Hanging Gondola Lift6m / 7.5m 380v Suspended Working Platform Cradle Hanging Gondola Lift6m / 7.5m 380v Suspended Working Platform Cradle Hanging Gondola Lift
