Glasston Tamglass Northglass Fused Silica Ceramic Roller For Glass Processing Furnace
Glasston Tamglass Northglass Fused Silica Ceramic Roller For Glass Processing Furnace
Specifications
Brand Name :
Vibran
Model Number :
VB-CER
Place of Origin :
CHINA
MOQ :
5 pcs
Price :
USD 500 per piece
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
10000 rolls
Delivery Time :
30days
Packaging Details :
Fumigate Wooden Case
Product Name :
Fused Silica Ceramic rollers
Application :
Glass tempering furnace machine
Raw Material :
Silica 99.8%
Bulk density :
>1.98 (g/cm3)
Apparent porosity :
7-11 (%)
Compression strength :
≥60 (MPa)
Diameter :
55mm, 60mm, 85mm, 95mm etc
Surface Roughness :
≤1.5 (μm)
Packing :
Fumigate Wooden Case
MOQ :
5 pcs
Description
Glasston Tamglass Northglass Fused Silica Ceramic Roller for Glass Deep Processing Furnace
TamGlass Glasston Unic Landglass Northglass Mountain Glass Jinglass Tempering Furnace
Product Introduction
The Fused Silica Ceramic roller consists of porcelain body, bearing, shaft and plastic labyrinth sealing ring. Ceramic roller shaft is a key component in glass horizontal tempering furnace, mainly used for carrying and transporting glass in glass horizontal tempering furnace.
Application
Glass Tempering Furnace, Silicon steel production, Lehr & lor float glass line, etc.
Glasston Tamglass Northglass Fused Silica Ceramic Roller For Glass Processing Furnace Glasston Tamglass Northglass Fused Silica Ceramic Roller For Glass Processing Furnace
Ceramic roller
Basic Information
Raw Material Silica Bulk density >1.98 (g/cm3)
Apparent porosity 7-11 (%) Press compression 102 Mpa
Compression strength ≥60 (MPa) Expansion coefficient 0.6*10-6/degree
Transverse strength ≥30 (Mpa) Certification CE, RoHS
Expasion Coefficient <0.6 (*10-6 /°C) Warranty 1 years
Surface Roughness ≤1.5 (μm) MOQ 5 Pieces
OD Tolerance ±0.05 (mm) Density 1.98g/cm3
Radial Beat (Tolerance in rotation) ≤0.10 (mm) Package Fumigate Wooden Case
Size can be customized with special specifications
Glasston Tamglass Northglass Fused Silica Ceramic Roller For Glass Processing Furnace

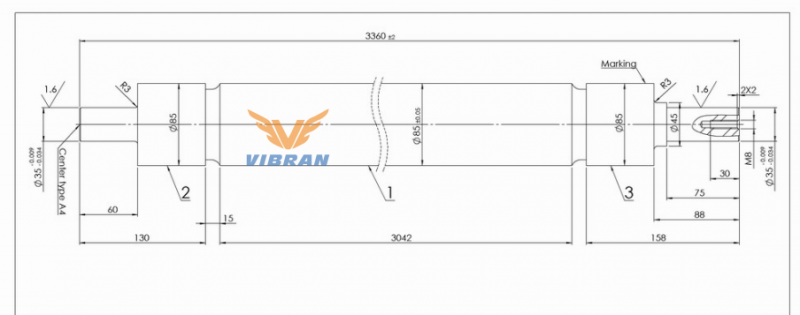

Sample drawing FYI
Detailed Photos
Glasston Tamglass Northglass Fused Silica Ceramic Roller For Glass Processing Furnace Glasston Tamglass Northglass Fused Silica Ceramic Roller For Glass Processing Furnace
Product Features
  • High purity and high density
  • Low porosity and critical manufacturing measurement
  • Smooth and delicate roller surface with small radial runout
  • Processing accuracy better than similar imported products
  • Does not scratch the glass
  • Anti-loose sleeve structure design for steel head
  • Original grouting forming technology for roll blank
  • High density, high strength, no deformation at high temperature
  • Wear resistant with long service life
  • Reduces comprehensive cost of belt conveyor and maintenance man-hours
  • Used in high grade Automobile, Electronic, Solar glass manufacture
Product Details
If there is any problem with the quality, we are responsible for returning it!
Packing & Delivery
MOQ: 5 pieces
We are professional manufacturer with many years experiences, self-produced direct sales, multi-specification, large-scale stock in stock, uninterrupted circulation supply!
We promise: 100% high-quality quartz production, refusal to adulterate, and serve our customers with quality and reputation.
Glasston Tamglass Northglass Fused Silica Ceramic Roller For Glass Processing Furnace Glasston Tamglass Northglass Fused Silica Ceramic Roller For Glass Processing Furnace
