Quartz Fused Silica Shaft Landglass Tamglass Tempering Furnace Ceramic Roller
Quartz Fused Silica Shaft Landglass Tamglass Tempering Furnace Ceramic Roller
Specifications
Brand Name :
VIBRAN
Model Number :
VB-CER
Place of Origin :
CHINA
MOQ :
4 pcs
Price :
from USD200 to USD600 per piece
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
10000 rolls
Delivery Time :
30days
Packaging Details :
Fumigate Wooden Case
Product Name :
Fused Silica Ceramic rollers
Application :
Glass tempering furnace machine
Raw Material :
Silica 99.8%
Bulk density :
>1.98 (g/cm3)
Apparent porosity :
7-11 (%)
Compression strength :
≥60 (MPa)
Diameter :
55mm, 60mm, 85mm, 95mm etc
Surface Roughness :
≤1.5 (μm)
Packing :
Fumigate Wooden Case
MOQ :
5 pcs
Description
Northglass, Landglass, Glasston, Tamglass Tempering Furnace Use Ceramic Roller Quartz Fused Silica Shaft
Product Introduction

The Fused Silica Ceramic roller consists of porcelain body, bearing, shaft, and plastic labyrinth sealing ring. Ceramic roller shaft is a key component in glass horizontal tempering furnace, primarily used for carrying and transporting glass.

Application

Glass Tempering Furnace, Silicon steel production, Lehr & float glass line, etc.

Basic Information
Raw Material Silica Bulk density >1.98 (g/cm3)
Apparent porosity 7-11 (%) Press compression 102 Mpa
Compression strength ≥60 (MPa) Expansion coefficient 0.6*10-6/degree
Transverse strength ≥30 (Mpa) Certification CE, RoHS
Expansion Coefficient <0.6 (*10-6 /°C) Warranty 1 years
Surface Roughness ≤1.5 (μm) MOQ 5 Pieces
OD Tolerance ±0.05 (mm) Density 1.98g/cm3
Radial Beat (Tolerance in rotation) ≤0.10 (mm) Package Fumigate Wooden Case

Size can be customized with special specifications

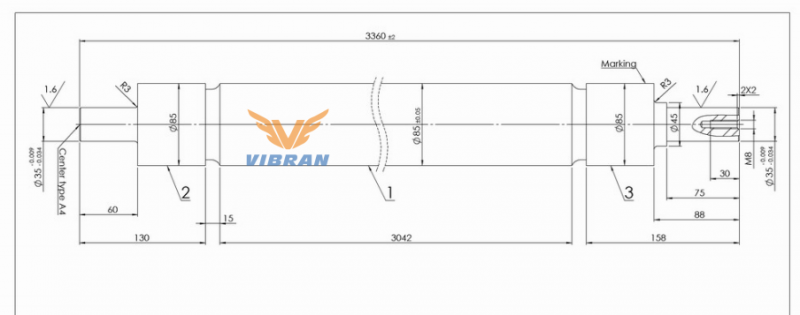

Sample Drawing FYIQuartz Fused Silica Shaft Landglass Tamglass Tempering Furnace Ceramic Roller
Detailed Photos
Quartz Fused Silica Shaft Landglass Tamglass Tempering Furnace Ceramic Roller
Quartz Fused Silica Shaft Landglass Tamglass Tempering Furnace Ceramic Roller Quartz Fused Silica Shaft Landglass Tamglass Tempering Furnace Ceramic Roller
Product Features
  • High purity and density with low porosity
  • Smooth surface with small radial runout and superior processing accuracy
  • Anti-loose sleeve structure design for extended service life
  • Original grouting forming technology for high density and strength
  • No deformation at high temperature, wear-resistant with long service life
  • Reduces conveyor costs and maintenance man-hours
  • Ideal for high-grade automobile, electronic, and solar glass manufacturing
Product Details

If there is any problem with the quality, we are responsible for returning it!

Packing & Delivery

MOQ: 4 pieces

We are professional manufacturers with many years of experience, offering self-produced direct sales, multi-specification products, large-scale stock availability, and uninterrupted supply.

We promise: 100% high-quality quartz production, refusal to adulterate, serving customers with quality and reputation.

Quartz Fused Silica Shaft Landglass Tamglass Tempering Furnace Ceramic Roller
