Glass Termpering Fused Silica Roller 55mm-95mm Quartz Ceramic Roller Shaft
Glass Termpering Fused Silica Roller 55mm-95mm Quartz Ceramic Roller Shaft
Specifications
Brand Name :
Vibran
Model Number :
LV-CER
Place of Origin :
CHINA
MOQ :
4 pcs
Price :
USD 200-800 per piece
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
10000 No.
Delivery Time :
30days
Packaging Details :
Fumigate Wooden Case
Product Name :
Fused Silica Ceramic rollers
Application :
Glass tempering furnace machine
Raw Material :
Silica 99.8%
Bulk density :
>1.98 (g/cm3)
Apparent porosity :
7-11 (%)
Compression strength :
≥60 (MPa)
Diameter :
55mm, 60mm, 85mm, 95mm etc
Surface Roughness :
≤1.5 (μm)
Packing :
Fumigate Wooden Case
MOQ :
5 pcs
Description
Fused Silica Roller Quartz Ceramic Roller Glass Tempering Ceramic Roller Shaft
TamGlass Glasston Unic Landglass Northglass Mountain Glass Jinglass Tempering Furnace
Product Introduction
The Fused Silica Ceramic roller consists of porcelain body, bearing, shaft and plastic labyrinth sealing ring. Ceramic roller shaft is a key component in glass horizontal tempering furnace, mainly used for carrying and transporting glass in glass horizontal tempering furnace.
Application
Glass Tempering Furnace, Silicon steel production, Lehr & float glass line, etc.
Glass Termpering Fused Silica Roller 55mm-95mm Quartz Ceramic Roller Shaft Glass Termpering Fused Silica Roller 55mm-95mm Quartz Ceramic Roller Shaft
Basic Information
Raw Material Silica Bulk density >1.98 (g/cm3)
Apparent porosity 7-11 (%) Press compression 102 Mpa
Compression strength ≥60 (MPa) Expansion coefficient 0.6*10-6/degree
Transverse strength ≥30 (Mpa) Certification CE, RoHS
Expansion Coefficient <0.6 (×10-6 /°C) Warranty 1 years
Surface Roughness ≤1.5 (μm) MOQ 5 Pieces
OD Tolerance ±0.05 (mm) Density 1.98g/cm3
Radial Beat (Tolerance in rotation) ≤0.10 (mm) Package Fumigate Wooden Case
Size can be customized with special specifications

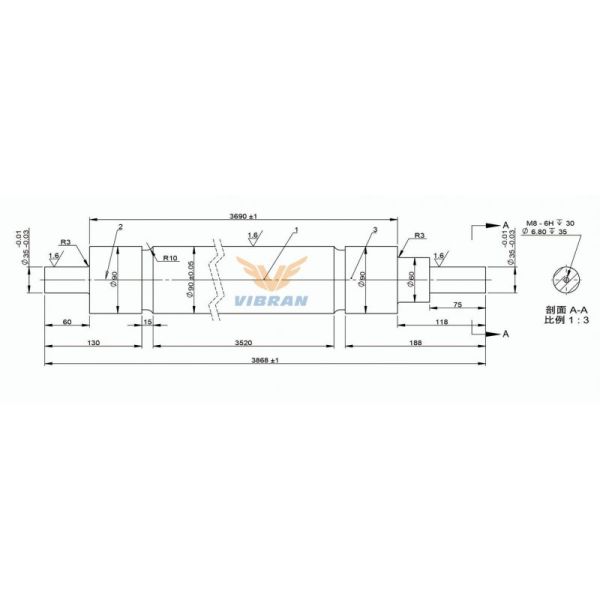

Glass Termpering Fused Silica Roller 55mm-95mm Quartz Ceramic Roller ShaftSample drawing FYI

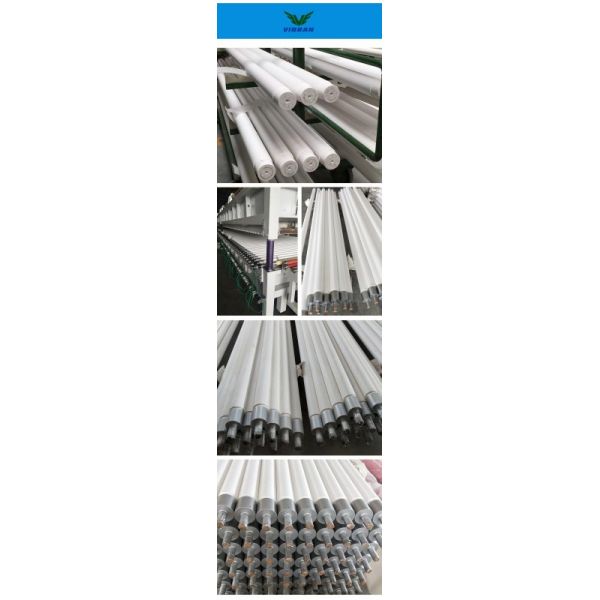

Detailed PhotosGlass Termpering Fused Silica Roller 55mm-95mm Quartz Ceramic Roller Shaft
Glass Termpering Fused Silica Roller 55mm-95mm Quartz Ceramic Roller Shaft Glass Termpering Fused Silica Roller 55mm-95mm Quartz Ceramic Roller Shaft
Product Features
  • High purity and density
  • Low porosity and critical manufacturing measurement
  • Smooth and delicate surface with small radial runout
  • Processing accuracy better than similar imported products
  • Does not scratch the glass surface
  • Anti-loose sleeve structure design for long service life
  • Original grouting forming technology for high density and strength
  • No deformation at high temperature, wear resistant
  • Reduces comprehensive cost of belt conveyor and maintenance man-hours
  • Ideal for high grade Automobile, Electronic, and Solar glass manufacture
Product Details
If there is any problem with the quality, we are responsible for returning it!
Packing & Delivery
MOQ: 4 pieces
We are professional manufacturer with many years experience, offering self-produced direct sales, multi-specification products with large-scale stock availability for uninterrupted supply.
We promise: 100% high-quality quartz production, refusal to adulterate, serving customers with quality and reputation.
Glass Termpering Fused Silica Roller 55mm-95mm Quartz Ceramic Roller Shaft Glass Termpering Fused Silica Roller 55mm-95mm Quartz Ceramic Roller Shaft
