99.8% Fused Silica Ceramic Roller 60mm 85mm Industrial Ceramic Rollers
99.8% Fused Silica Ceramic Roller 60mm 85mm Industrial Ceramic Rollers
Specifications
Brand Name :
VIBRAN
Model Number :
VB-CER
Place of Origin :
CHINA
MOQ :
5 pcs
Price :
from USD200 to USD600 per piece
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
10000 rolls
Delivery Time :
30days
Packaging Details :
Fumigate Wooden Case
Product Name :
Fused Silica Ceramic rollers
Application :
Glass tempering furnace machine
Raw Material :
Silica 99.8%
Bulk density :
>1.98 (g/cm3)
Apparent porosity :
7-11 (%)
Compression strength :
≥60 (MPa)
Diameter :
55mm, 60mm, 85mm, 95mm etc
Surface Roughness :
≤1.5 (μm)
Packing :
Fumigate Wooden Case
MOQ :
5 pcs
Description
Industrial Ceramic Rollers for Glass Tempering and Processing Kiln Oven
High-quality fused silica ceramic rollers designed for glass tempering furnaces and processing applications. Compatible with TamGlass, Glasston, Unic, Landglass, Northglass, Mountain Glass, and Jinglass tempering furnaces.
Product Introduction
The Fused Silica Ceramic roller consists of porcelain body, bearing, shaft, and plastic labyrinth sealing ring. These rollers are essential components in glass horizontal tempering furnaces, primarily used for carrying and transporting glass during the tempering process.
Applications
Glass Tempering Furnace, Silicon steel production, Lehr & float glass line, and other industrial glass processing applications.

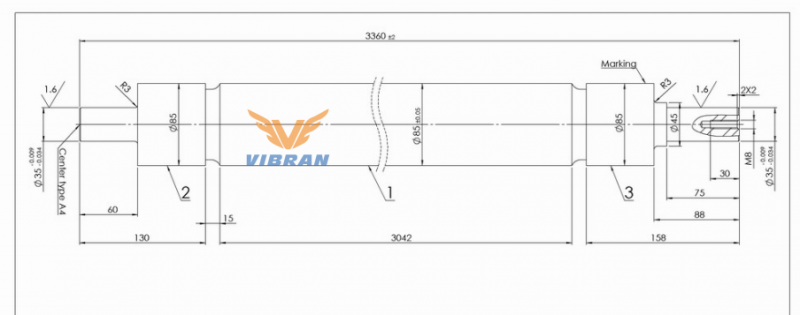

99.8% Fused Silica Ceramic Roller 60mm 85mm Industrial Ceramic Rollers
Technical Specifications
Parameter Value Parameter Value
Raw Material Silica Bulk density >1.98 (g/cm³)
Apparent porosity 7-11 (%) Press compression 102 Mpa
Compression strength ≥60 (MPa) Expansion coefficient 0.6×10⁻⁶/°C
Transverse strength ≥30 (Mpa) Certification CE, RoHS
Surface Roughness ≤1.5 (μm) Warranty 1 year
OD Tolerance ±0.05 (mm) MOQ 5 Pieces
Radial Beat ≤0.10 (mm) Package Fumigated Wooden Case
Note: Sizes can be customized to meet special specifications.
99.8% Fused Silica Ceramic Roller 60mm 85mm Industrial Ceramic Rollers
Product Features
  • High purity and density materials
  • Low porosity with critical manufacturing measurements
  • Smooth, delicate surface with minimal radial runout
  • Superior processing accuracy compared to imported alternatives
  • Anti-scratch design that protects glass surfaces
  • Anti-loose sleeve structure for extended service life
  • Original grouting forming technology for high density and strength
  • High temperature resistance with no deformation
  • Wear-resistant construction for long operational life
  • Reduces conveyor system costs and maintenance requirements
  • Ideal for high-grade automotive, electronic, and solar glass manufacturing
Quality Assurance
We guarantee product quality and offer return policy for any quality issues. Contact us for support.
Packing & Delivery
Minimum order quantity: 5 pieces. As professional manufacturers with years of experience, we maintain large-scale inventory for uninterrupted supply. We commit to 100% high-quality quartz production with strict quality control.
