250m Kevlar Aramid Rope With Extreme Heat And Mechanical Stress
250m Kevlar Aramid Rope With Extreme Heat And Mechanical Stress
Specifications
Brand Name :
VIBRAN
Model Number :
Kevlar Aramid
Place of Origin :
CHINA
MOQ :
1 roll 250meters
Price :
USD 1.50 per meter
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
10000 rolls
Delivery Time :
3-5days
Packaging Details :
Cartons
Product Name :
Kevlar Aramid rope
Application :
Glass tempering furnace
material :
kevlar aramid fiber
Size :
can be customized
Specification :
250M Roll
Color :
Yellow
Shape :
Square/ Flat/ Round
Structure :
Braided
Type :
kevlar rope
MOQ :
One roll 250m
Packing :
Carton
Feature :
High temperature resistance
Description
Kevlar Aramid Rope for Glass Tempering Operations
Engineered for the extreme environment of glass tempering, our premium Aramid Roller Rope is the industry-standard solution for protecting glass during the critical quenching and cooling phases.
Key Features & Performance Benefits
  • Exceptional High-Temperature Performance: Withstands continuous operating temperatures up to 480-500°C (896-932°F) without melting, degrading, or stretching.
  • Superior Glass Surface Protection: Prevents thermal shock, scratches, roller marks, and micro-cracks on hot glass surfaces.
  • Unmatched Durability & Abrasion Resistance: Five times stronger than steel wire by weight with outstanding resistance to cutting and abrasion.
  • Excellent Dimensional Stability: Low elongation (approximately 3.6%) maintains shape and tension under extreme heat.
  • Reduces Thermal Shock & Improves Quality: Acts as a thermal barrier between hot glass (approx. 700°C) and cooler metal rollers.
Technical Specifications
Specification Details Performance Advantage
Material 100% Para-Aramid Fiber Provides superior strength, heat resistance, and durability. Asbestos-free for enhanced workplace safety.
Continuous Operating Temp. Up to 500°C (932°F) Ensures structural integrity in demanding quenching environments without melting or degrading.
Construction Profiles Square Braided, Flat Braided, Round Braided Versatile options to ensure secure fit on various roller types and diameters.
Available Sizes Customizable; Common sizes include 5.5x5.5mm, 8x4mm, 12x3mm Guarantees compatibility with major furnace brands and allows optimized roller wrapping.
Tensile Strength ~5x stronger than steel wire by weight Resists stretching and breaking under tension, leading to longer operational lifespan.
Applications & Compatibility

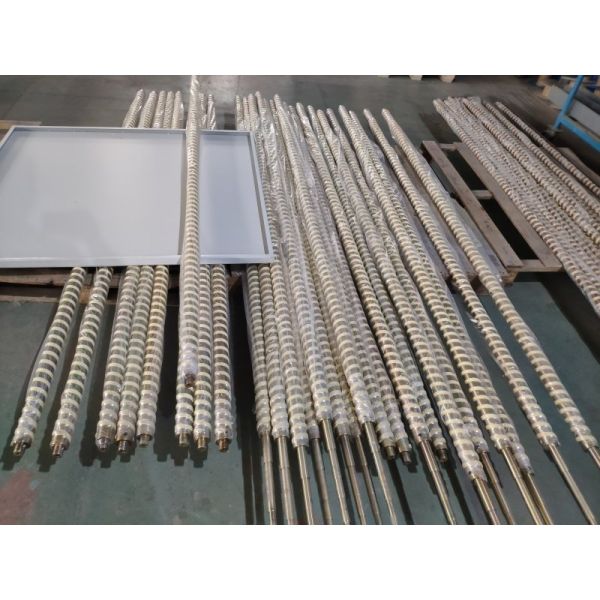

  • Primary Application: Wrapping transport rollers in quench and cooling sections of horizontal glass tempering furnaces.
  • Other Uses: Suitable for rollers on glass bending ovens, automotive glass production lines, and loading/unloading tables.
  • Furnace Compatibility: Available in standard and custom sizes for seamless integration with all major manufacturers.
Frequently Asked Questions
How does this aramid rope improve the quality of tempered glass?
The rope creates a soft, protective barrier that prevents direct contact between the hot glass and the metal rollers, eliminating thermal shock, scratches, and roller marks for a flawless finish.
What is the expected lifespan of the rope?
The exceptional abrasion resistance and strength ensure a long service life with minimal maintenance required - just regular inspection for wear.
