Coffee Room Large Ultra Clear PDLC Smart Glass Remote Control Environmental Protection Smart Dimming Glas Privacy Protections
Coffee Room Large Ultra Clear PDLC Smart Glass Remote Control Environmental Protection Smart Dimming Glas Privacy Protections
Coffee Room Large Ultra Clear PDLC Smart Glass Remote Control Environmental Protection Smart Dimming Glas Privacy Protections
Coffee Room Large Ultra Clear PDLC Smart Glass Remote Control Environmental Protection Smart Dimming Glas Privacy Protections
Coffee Room Large Ultra Clear PDLC Smart Glass Remote Control Environmental Protection Smart Dimming Glas Privacy Protections
Coffee Room Large Ultra Clear PDLC Smart Glass Remote Control Environmental Protection Smart Dimming Glas Privacy Protections
Specifications
Brand Name :
OEM
Model Number :
XF-PDLC08
Certification :
CCC/ISO9001/CE/SGCC
Place of Origin :
China, Guangdong
MOQ :
10 square meters
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20000 sqm per Day
Delivery Time :
7-15 working days
Packaging Details :
Strong export plywood crates to make sure safety delivery
Product Name :
PDLC Smart Glass Remote Control
Controller :
smart, wifi, sound, remote control
Features :
environmental protection, sound insulation, ultraviolet protection, ultra-low atomization, low energy consumption, easy cleaning, projection function
Situation :
office, bathroom, shopping mall, window, conference room, bedroom, bathroom, hotel, hotel
Shape :
Flat or Curve
Application :
Windows, partition walls, shower enclosures, etc.
Description

Coffee Room Large Ultra Clear PDLC Smart Glass Remote Control

PDLC smart glass is a kind of polymer dispersed liquid crystal dimming glass, which has been widely used in many fields, such as architecture, automobile and so on, for its privacy protection, energy saving, environmental protection and beauty.

  • Specification

​

Product

PDLC Smart Glass

Thickness

pdlc smart film thickness 0.5mm
pdlc smart glass thickness 11mm
Size
pdlc smart film max size 1800x50000mm
pdlc smart film glass max size 1800x4000mm

Function

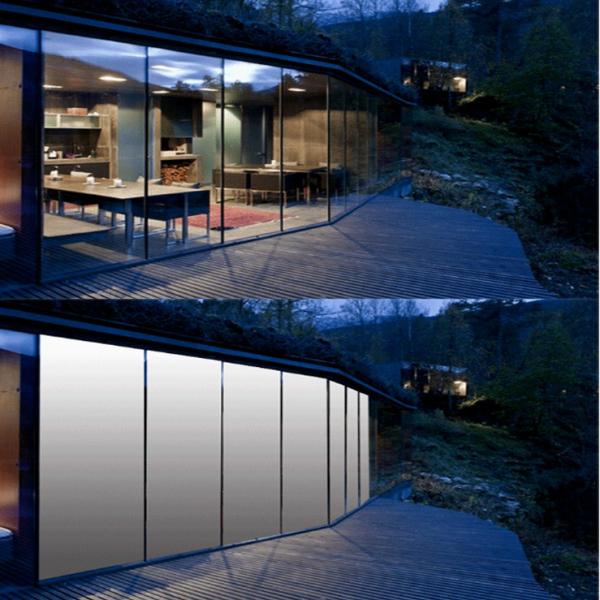

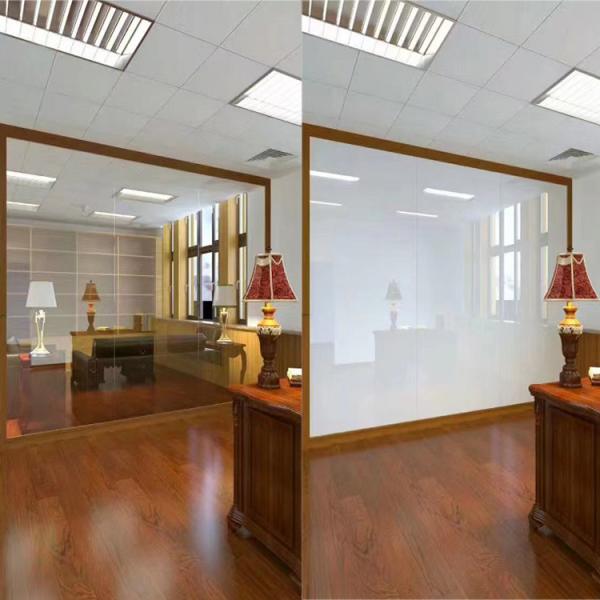

Can control from opaque to transparent via the switch, which when the power is off, it is opaque, and when the power is on, it is transparent

Visible Light Transmittance

>85%(ON), >50%(OFF)

Parallel Light Transmittance

>80%(ON), <2%(OFF)
Power Consumption <5W/M2(ON)
Switch Frequency >80 million times

Application

Windows, partition walls, shower enclosures, etc.

Delivery time

7-15 days

Packing

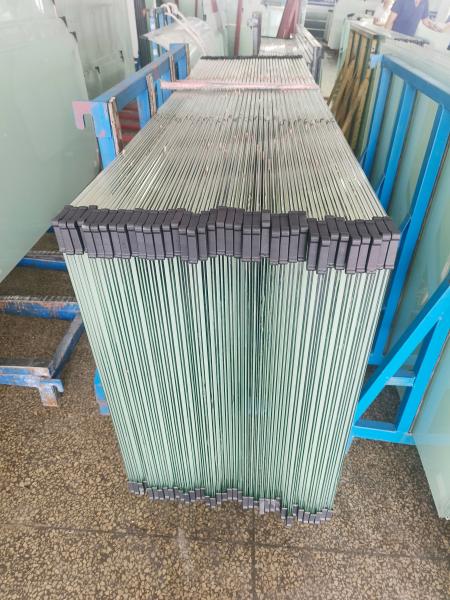

Strong export plywood crates to make sure safety delivery


PDLC glass requires the following professional tools and technologies

Selection of membrane materials: Select appropriate PDLC membrane materials, and select appropriate membranes according to functionality, appearance and budget.

Preparation of construction environment: ensure that the construction environment is dry and clean, and avoid pollutants such as dust and oil pollution from affecting the adhesion of the membrane. The construction temperature should be kept between 10°C and 30 C.

Glass cleaning: use proper glass cleaning agent and fiber-free cloth to clean dirt, oil stains and dust on the glass surface and ensure that the water is completely scraped dry.

Construction tools: Prepare spray bottles, scrapers, blades, rulers, level meters and other tools to ensure smooth film cutting and avoid burrs or irregular shapes.
