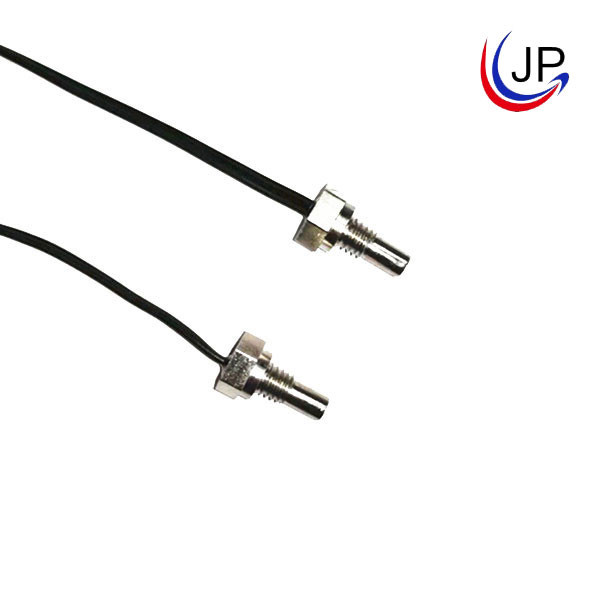

0.3k To 2000k Probe Temperature Sensor B Value 2500K To 4500K Thread Type Epoxy
0.3k To 2000k Probe Temperature Sensor B Value 2500K To 4500K Thread Type Epoxy
0.3k To 2000k Probe Temperature Sensor B Value 2500K To 4500K Thread Type Epoxy
0.3k To 2000k Probe Temperature Sensor B Value 2500K To 4500K Thread Type Epoxy
Specifications
Brand Name :
JP SENSOR
Model Number :
MFP-6B
Certification :
ISO9001, RoHS
Place of Origin :
Anhui, China
MOQ :
1000 Pieces
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 Million per Year
Delivery Time :
2 Weeks
Packaging Details :
Carton Packing
Operating temperature range :
-20℃~105℃(PVC)
Chip :
NTC Thermistor
Resistance :
0.3KΩ~ 2000KΩ
B Value :
2500k ~ 4500k
Application :
Home appliances, commercial unit, automobile, etc
Customization :
Yes
Description

0.3k To 2000k Probe Temperature Sensor B Value 2500K To 4500K Thread Type Epoxy

Product Description:

It consists of the insulated wire ( wire,PVC wire,XLPE insulated wire), NTC chip, epoxy resin, and Nickel-plated copper M6 threaded probe. The optional resistance value range is from 0.3kΩ to 2000kΩ, and the beta value range is from 2500K to 4500K.

Features:

Comply with RoHS standard

insulated lead wires series Operating temperature range: -40℃~125℃

PVC insulated lead wires series Operating temperature range: -20℃~105℃

Easy to install and operate as the sealing can be done according to the environment

Application:

Home appliances, commercial units, automobiles, etc.

Structure and Dimensions:(unit: mm)

0.3k To 2000k Probe Temperature Sensor B Value 2500K To 4500K Thread Type Epoxy

Electrical Specification:

Rec. at 25℃(kΩ) Beta value (In air)Pmax(mW) δ(mW/℃) thermal time constant τ(sec.) Operating Temperature Range TL-TH(℃) Total length
L(mm)
1 B25/85=3435 Approx.60 / / -20℃~105℃(PVC wire)& -40℃~125℃( or XLPE wire) 100~5000
1.5 B25/50=3850
1.5 B25/50=3935
2 B25/85=3550
2 B25/85=3935
2.08 B25/85=3580
2.2 B25/50=3935
3 B25/50=3950
5 B25/50=3470
5 B25/50=3950
8 B25/100=3988
10 B25/85=3435
10 B25/50=3470
10 B25/50=3935
10 B25/50=3950
20 B25/50=3950
47 B25/50=3950
50 B25/50=3950
50 B25/50=4200
100 B25/50=4200
200 B25/50=4200
500 B25/50=4450
1000 B25/85=4600

Other Product Images:

0.3k To 2000k Probe Temperature Sensor B Value 2500K To 4500K Thread Type Epoxy0.3k To 2000k Probe Temperature Sensor B Value 2500K To 4500K Thread Type Epoxy0.3k To 2000k Probe Temperature Sensor B Value 2500K To 4500K Thread Type Epoxy
