Micro thin film type sensor probe 200cm length
Micro thin film type sensor probe 200cm length
Micro thin film type sensor probe 200cm length
Micro thin film type sensor probe 200cm length
Micro thin film type sensor probe 200cm length
Micro thin film type sensor probe 200cm length
Specifications
Model Number :
MF5A-7
Certification :
ISO13485
Place of Origin :
Hefei, Anhui province, China
MOQ :
500pcs
Price :
USD 4.80 /PC
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000PCS/MONTH
Delivery Time :
20-25 working days
Packaging Details :
standard export packing
Shipping :
Air Freight or Others
Output Signal :
Analog
Temperature Range :
0℃~50℃
B Tolerance :
0.5%
Maximum Temperature :
80°C
Sensor Material :
Platinum
Accuracy :
+/- 0.2°F
Insulation :
Good shielding
Tolerance :
(25 ~ 45) ℃ ± 0.1 ℃
Coating :
over-temperature protection
Lifespan :
Longer Product Life
Customization :
Yes
Color :
Amber
Working Temperature :
From 0℃～+60℃
Size :
200cm
Description

Micro thin film type sensor probe 200cm length

Product description

The item is one Micro thin film type sensor probe 200cm length. The micro thin film type sensor probes are encapsulated with epoxy in polyimide tubes with polyesterimide insulated #38 AWG solid nickel wire leads. They feature paralell bonding and come in standard overall lengths of 3, 6 and 12 inches. These thermistor probes are ideal for use with small probe housing and applications that require fast thermal response time.

Engineering Information

Typical diameter 0.023 inches

Typical wire size #38 AWG

Leads: solid nickel, polyesterimide insulation

Materials: epoxy, polyimide

Typical Dissipation Constant: 0.2mW/℃ in still air

Typical time Constant in still air: 3 seconds max

Micro thin film type sensor probe 200cm length

Resistance / temperature characteristics

Temperature (℃) 223Fu5
-10 100.3
0 62.92
10 40.56
20 26.82
30 18.16
40 12.58
50 8.892
60 6.407
70 4.700

Reliability data

Item Test conditions Criteria
Free fall Three times natural fall to a maple board from 1 m height △R, △B±0.5%
Dry heat 1000 hours at 70℃ △R, △B±0.5%
Damp heat 1000 hours at 70℃ and 90% to 95% humidity △R, △B±0.5%

Temperature cycle

(thermal shock)

Seven cycles as below:

1. -20℃ for 12 hours

2. Room temperatur for 1 minute

3. 55℃ for 12 hours

4. Room temperature for 1 minute

 △R, △B±0.5%

Connection method

The lead wire can be soldered to larger wires by winding it around the larger wire and then soldering.

Micro thin film type sensor probe 200cm length

Caution

The miniature NTC thermistor sensor probe is manufactured using a semiconductor process. Due to its microstructure the sensor is sensitive to

electrostatic discharge in just the same way as common integrated circuits are.

In order to prevent damage to or failure of the sensor recommends to take appropriate precautions against when handling it.

Failure to protect the sensor against ESD may also cause damage to the equipment installed with the sensor, because electrostatic discharge can cause small parametric changes, which means that the sensor may not meet its published specification.

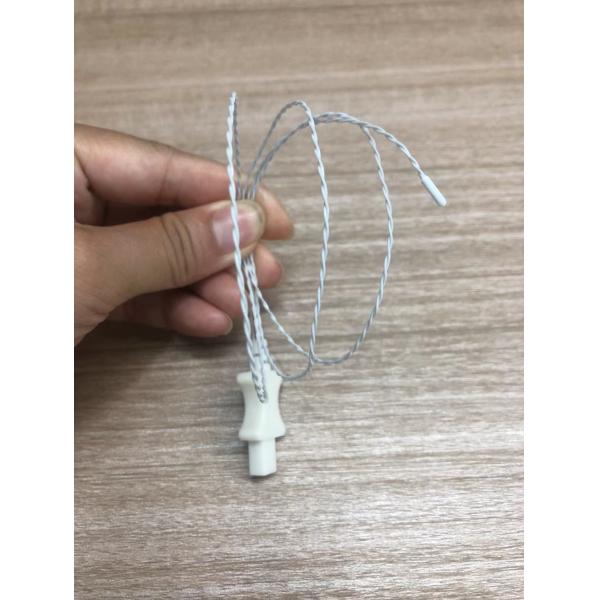

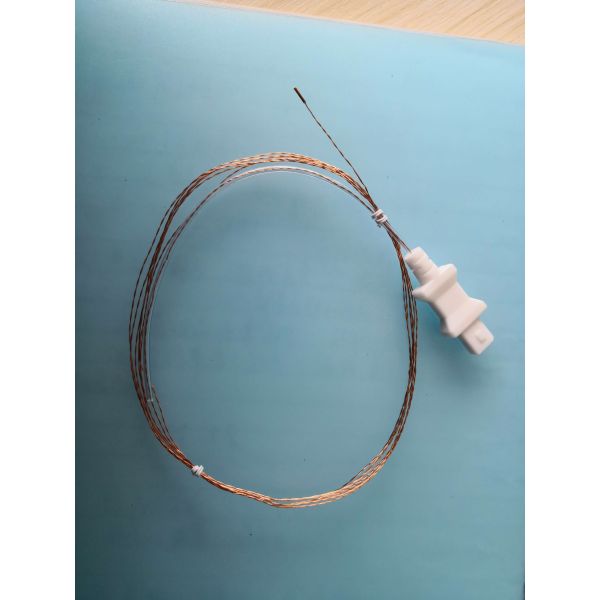

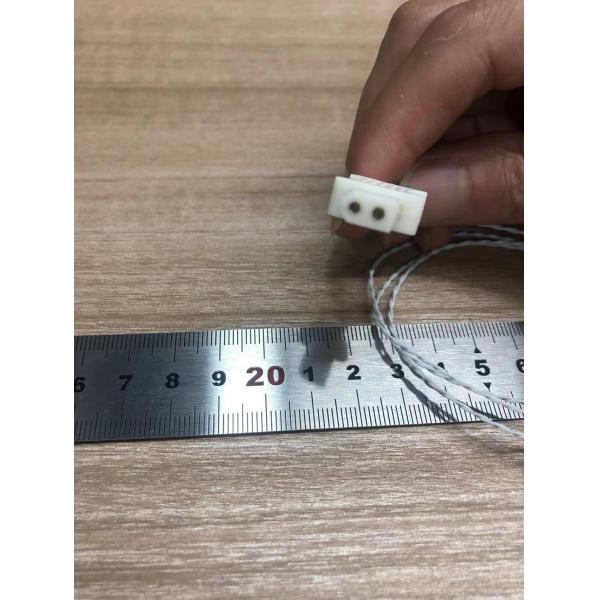

Product image

Micro thin film type sensor probe 200cm length

Micro thin film type sensor probe 200cm length

Micro thin film type sensor probe 200cm length

Product Applications

Medical catheters

Guide wires

Testing equipment

Handheld medical devices

Body temperature monitoring

Other applications that require very small probes

(1) Lead wire length customized according to customer requirements (max.200 cm).

(2) Bare lead wire length customized according to customer requirements

Please contact Jingpu sales staff for products without resin coating on the sensor head for even smaller diameter/.
