R25 Epoxy Encapsulated NTC Temp Sensor For Generator Temperature Measurement
R25 Epoxy Encapsulated NTC Temp Sensor For Generator Temperature Measurement
R25 Epoxy Encapsulated NTC Temp Sensor For Generator Temperature Measurement
R25 Epoxy Encapsulated NTC Temp Sensor For Generator Temperature Measurement
R25 Epoxy Encapsulated NTC Temp Sensor For Generator Temperature Measurement
R25 Epoxy Encapsulated NTC Temp Sensor For Generator Temperature Measurement
R25 Epoxy Encapsulated NTC Temp Sensor For Generator Temperature Measurement
R25 Epoxy Encapsulated NTC Temp Sensor For Generator Temperature Measurement
Specifications
Brand Name :
JP SENSOR
Certification :
ISO9001, RoHS
Place of Origin :
Anhui, China
MOQ :
500 Pieces
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 Million per Year
Delivery Time :
2 Weeks
Packaging Details :
Standard Packing
Model Number :
MFP-6B
Resistance :
R25=30KΩ±1%
Beta Value :
B25/50=3950k±1%
Wire :
UL1332 24AWG
Probe :
Stainless steel probe
Operating temperature range :
-40℃~150℃
Feature :
Accurate measurement and high reliability
Application :
Temperature measurement for generator
Encapsulation :
Epoxy resin
OEM/ODM :
Available
Customization :
Available
Description

Epoxy Encapsulated NTC Temperature Sensor For Temperature Measurement Of Generator

Brief Introduction:

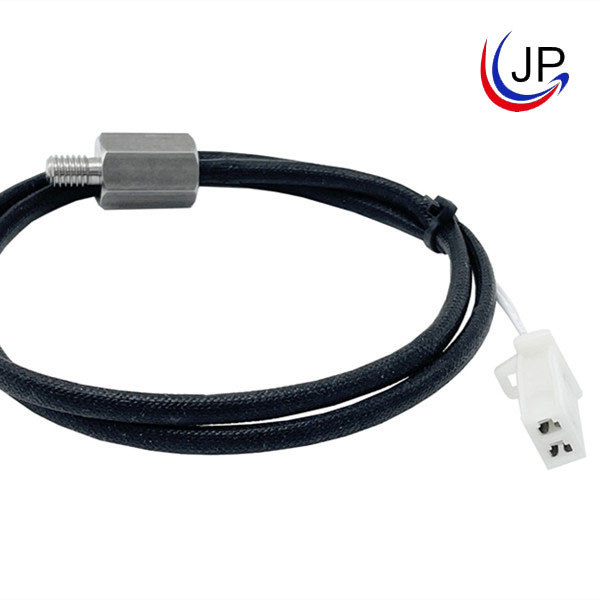

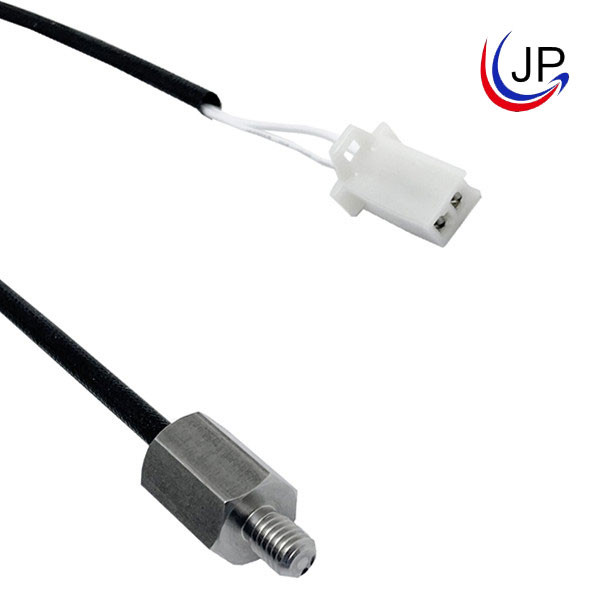

This product is used to measure the generator temperature and feed it back to the temperature control system. The product probe is a stainless steel probe, the wire is a UL1332 24AWG high-temperature wire at 200℃, the wire is covered by a black glass fiber tube at Φ3.0. Its parameter is R25=30KΩ±1%, B25 /50=3950k±1%.

Features:

Comply with RoHS standard

Operating temperature range: -40℃~150℃

Stainless steel probe

R25=30KΩ±1%, B25/50=3950k±1%

Accurate measurement, high reliability

Application:

Temperature measurement for generator

Structure and Dimensions:

R25 Epoxy Encapsulated NTC Temp Sensor For Generator Temperature Measurement

NO. Name Material Specification QTY. Remarks
1 Chip NTC Thermal Chip 1 --
2 Shell SUS M6*26-K-M5*13 1 /
3 Encapsulation Epoxy Resin / Black
4 Tube Φ3.0 1 Black
5 Cable UL1332 24AWG 200℃ 2 White
6 Connector DJ7021A-2.8-21 1 White

Electrical Specification:

Rec. at 25℃(kΩ) Beta value (In air)Pmax(mW) δ(mW/℃) thermal time constant τ(sec.) Operating Temperature Range TL-TH(℃) Total length
L(mm)
1 B25/85=3435 Approx.60 / / -20℃~105℃(PVC wire)& -40℃~125℃( or XLPE wire) 100~5000
1.5 B25/50=3850
1.5 B25/50=3935
2 B25/85=3550
2 B25/85=3935
2.08 B25/85=3580
2.2 B25/50=3935
3 B25/50=3950
5 B25/50=3470
5 B25/50=3950
8 B25/100=3988
10 B25/85=3435
10 B25/50=3470
10 B25/50=3935
10 B25/50=3950
20 B25/50=3950
47 B25/50=3950
50 B25/50=3950
50 B25/50=4200
100 B25/50=4200
200 B25/50=4200
500 B25/50=4450
1000 B25/85=4600
