High Accuracy Ntc Thermistor Sensor With Small Epoxy Coating Bead 4.0mm
High Accuracy Ntc Thermistor Sensor With Small Epoxy Coating Bead 4.0mm
High Accuracy Ntc Thermistor Sensor With Small Epoxy Coating Bead 4.0mm
High Accuracy Ntc Thermistor Sensor With Small Epoxy Coating Bead 4.0mm
High Accuracy Ntc Thermistor Sensor With Small Epoxy Coating Bead 4.0mm
High Accuracy Ntc Thermistor Sensor With Small Epoxy Coating Bead 4.0mm
Specifications
Brand Name :
Jingpu Brand
Model Number :
MF5A-200
Certification :
CE,ROHS,ISO13485/9001
Place of Origin :
Hefei, Anhui, China
MOQ :
1000
Price :
USD 0.6-2 /PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 Million per Year
Delivery Time :
2-7days
Packaging Details :
Carton packing
Way to install :
Inserting
Sensing way :
Resistence
Output signal type :
Analog Type
Material :
Copper tinned lead
Measuring the dielectric :
Temperature
IP code :
IP64
Transport package :
Carton Packing
Appearance :
Miniature
Warranty :
12~24 Months
After-sale service :
Quality Assurance
Customization :
Yes
Operating Temperature :
25℃~45℃
Resistence Value :
Custom
B Value :
Custom
Shipping :
Shipping, Air, or Express
Wire :
PVC/XPLE/FEP/PTFE
Description

High Accuracy Ntc Thermistor Sensor With Small Epoxy Coating Bead 4.0mm

Brief Instruction:

10Kω high precision epoxy coated NTC Thermistor, with temperature measuring accuracy of 25℃~45℃±0.1℃, can be used for medical instruments and equipment.

Features:

R25℃=10kΩ

B0/50=3892k±0.5%

Temperature measuring accuracy 25℃~45℃±0.1℃

Copper tinned lead 0.25

Application:

Medical instruments, medical equipment

Structure and Dimensions:(unit:mm)

High Accuracy Ntc Thermistor Sensor With Small Epoxy Coating Bead 4.0mm

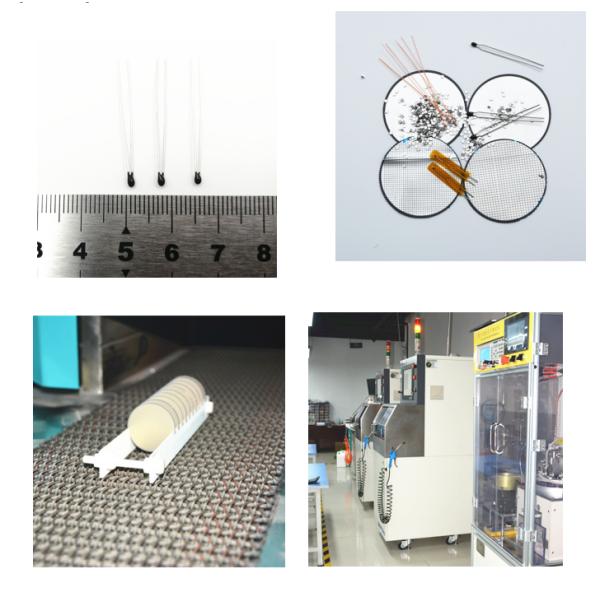

product picture:

High Accuracy Ntc Thermistor Sensor With Small Epoxy Coating Bead 4.0mm

Features:
1:MF5A-200 series products are NTC thermistor temperature sensors coated with epoxy resin in the same direction enameled wire
2: Wide resistance range: 1KΩ~200KΩ
3: high accuracy of resistance value and B value
4: good insulation, high reliability, small time constant
5: Small volume, fast reflection speed
6: Able to work steadily for a long time with good consistency
7: Operating temperature range :25~45℃
