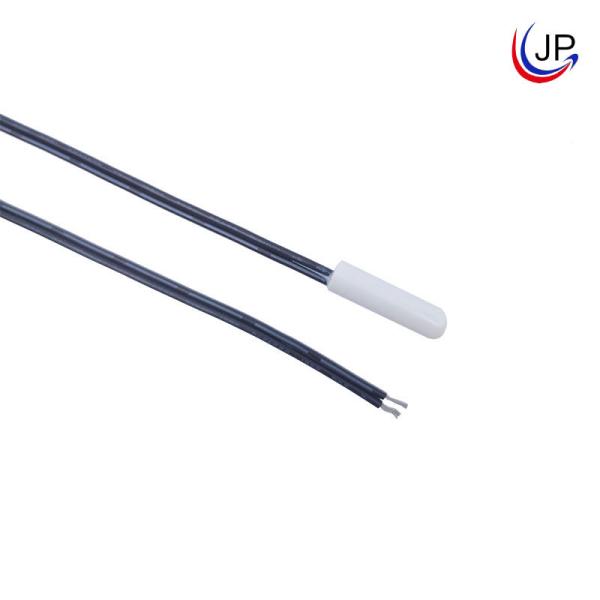

Refrigerators NTC 10k Thermistor Temperature Sensor Epoxy Encapsulated ABS Probe
Refrigerators NTC 10k Thermistor Temperature Sensor Epoxy Encapsulated ABS Probe
Refrigerators NTC 10k Thermistor Temperature Sensor Epoxy Encapsulated ABS Probe
Refrigerators NTC 10k Thermistor Temperature Sensor Epoxy Encapsulated ABS Probe
Specifications
Brand Name :
JP SENSOR
Model Number :
MFT
Certification :
ISO9001, RoHS
Place of Origin :
Anhui, China
MOQ :
500 Pieces
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 Million per Year
Delivery Time :
2 Weeks
Packaging Details :
Standard Packing
ABS Probe shell :
Φ7*25mm
Operation temperature range :
-40℃~80℃
Application :
Refrigerators
Chip :
NTC Chip Thermistor
Encapsulation :
Epoxy resin(white)
Cable :
UL2651 24AWG PVC Cable
Description

Refrigerators NTC 10k Thermistor Temperature Sensor Epoxy Encapsulated ABS Probe

Product Description:

ABS probe NTC temperature sensor for refrigerators, the probe is a common ABS shell Φ7*25mm in the market, the wire is a two-core sheath shell, the parameters are generally 5KΩ, 10kΩ, and the control temperature is about 0 °C.

Features:

Comply with RoHS standard

PVC insulated lead wires series Operating temperature range: -40℃~80℃

Stable performance

Accurate temperature measurement

Application:

Refrigerators

Structure and Dimensions(mm):

Refrigerators NTC 10k Thermistor Temperature Sensor Epoxy Encapsulated ABS Probe

Electrical Specification:

Rec. at 25℃(kΩ)+A2:G25+A2:G25 Beta value (In air) Pmax(mW) δ(mW/℃) Thermal time constant τ(sec.) Operating Temperature Range TL-TH(℃) Total length
L(mm)
1 B25/85=3435 Approx.60 Max.3.0 Max.20 -40℃~125℃ 100~5000
1.5 B25/50=3850
1.5 B25/50=3935
2 B25/85=3550
2 B25/85=3935
2.08 B25/85=3580
2.2 B25/50=3935
3 B25/50=3950
5 B25/50=3470
5 B25/50=3950
8 B25/100=3988
10 B25/85=3435
10 B25/50=3470
10 B25/50=3935
10 B25/50=3950
20 B25/50=3950
47 B25/50=3950
50 B25/50=3950
50 B25/50=4200
100 B25/50=4200
200 B25/50=4200
500 B25/50=4450
1000 B25/85=4600

Other Product Images:

Refrigerators NTC 10k Thermistor Temperature Sensor Epoxy Encapsulated ABS ProbeRefrigerators NTC 10k Thermistor Temperature Sensor Epoxy Encapsulated ABS Probe
