Electric Kettle Probe Temperature Sensor Stainless Steel Home Appliances
Electric Kettle Probe Temperature Sensor Stainless Steel Home Appliances
Electric Kettle Probe Temperature Sensor Stainless Steel Home Appliances
Electric Kettle Probe Temperature Sensor Stainless Steel Home Appliances
Specifications
Brand Name :
JP SENSOR
Model Number :
MFP-3G
Certification :
ISO9001, RoHS
Place of Origin :
Anhui, China
MOQ :
1000 Pieces
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 Million per Year
Delivery Time :
2 Weeks
Packaging Details :
Standard Packing
Probe :
Stainless Steel Probe
Wire :
UL4413 26AWG XLPE 150℃
Resistance :
50KΩ
B25/50 :
3950K
Operating temperature range :
-40℃~125℃
Customization :
Available
Description

Electric Kettle Probe Temperature Sensor Stainless Steel Home Appliances

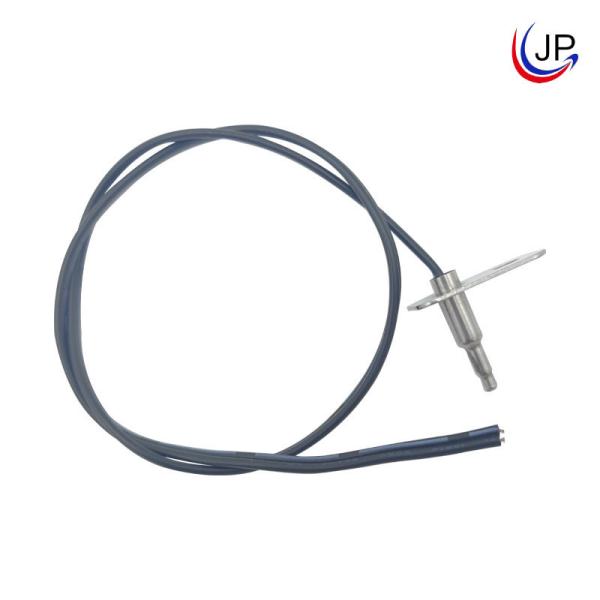

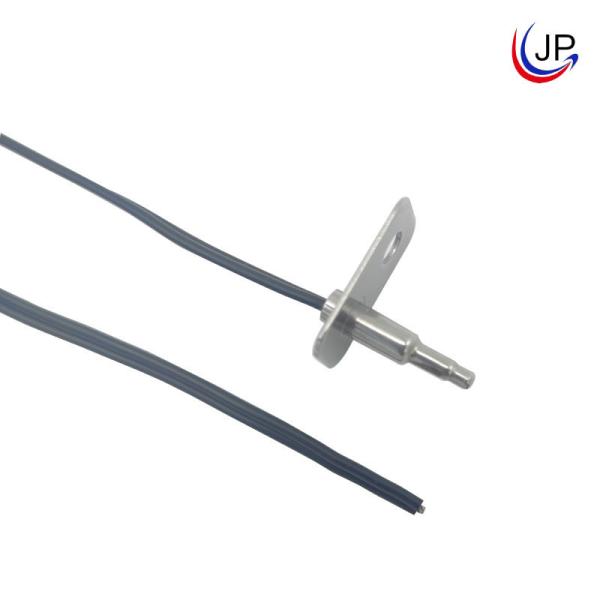

Brief Introduction (Product Description):

This product is generally used in electric kettles and other small home appliances. The probe of the product is stainless steel, the wire is UL4413 26AWG XLPE 150℃ irradiated wire, and the resistance parameters are generally 50KΩ, B25/50=3950K (can also be customized according to customer requirements). It is encapsulated with epoxy resin, the wire tail can be equipped with corresponding connectors according to customer requirements.

Features:

Fast response

Comply with RoHS standard

Operating temperature range: -40℃~125℃

Easy to install

Stainless steel probe

Application:

Electric kettle, water heater, etc

Electrical Specification:

Rec. at 25℃(kΩ) Beta value

(In air)

Pmax(mW)

 δ(mW/℃) Thermal time constant τ(sec.) Operating Temperature Range TL-TH(℃) Total length
L(mm)
1 B25/85=3435 Approx.60 / / -20℃~105℃(PVC wire)& -40℃~125℃(teflon or XLPE wire) 100~5000
1.5 B25/50=3850
1.5 B25/50=3935
2 B25/85=3550
2 B25/85=3935
2.08 B25/85=3580
2.2 B25/50=3935
3 B25/50=3950
5 B25/50=3470
5 B25/50=3950
8 B25/100=3988
10 B25/85=3435
10 B25/50=3470
10 B25/50=3935
10 B25/50=3950
20 B25/50=3950
47 B25/50=3950
50 B25/50=3950
50 B25/50=4200
100 B25/50=4200
200 B25/50=4200
500 B25/50=4450
1000 B25/85=4600

Other Product Images:

Electric Kettle Probe Temperature Sensor Stainless Steel Home Appliances

Electric Kettle Probe Temperature Sensor Stainless Steel Home AppliancesElectric Kettle Probe Temperature Sensor Stainless Steel Home Appliances
