3977K 3.9mm 25mm Thin Film NTC Thermistor 10Kohm For Computer
3977K 3.9mm 25mm Thin Film NTC Thermistor 10Kohm For Computer
3977K 3.9mm 25mm Thin Film NTC Thermistor 10Kohm For Computer
3977K 3.9mm 25mm Thin Film NTC Thermistor 10Kohm For Computer
3977K 3.9mm 25mm Thin Film NTC Thermistor 10Kohm For Computer
3977K 3.9mm 25mm Thin Film NTC Thermistor 10Kohm For Computer
Specifications
Brand Name :
JP SENSOR
Model Number :
MF5A-6
Certification :
ISO9001, RoHS
Place of Origin :
Anhui, China
MOQ :
5000 Pieces
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 Million per Year
Delivery Time :
2 Weeks
Packaging Details :
Carton Packing
Width of Film :
3.9mm
Length of film :
25mm
Parameters :
10KΩ3977K
Operating temperature range :
-40℃~100℃
Application :
Home appliances, computer, printer, battery pack
Film :
Polyimide film
Description

3977K 3.9mm 25mm Thin Film NTC Thermistor 10Kohm For Computer

Brief Introduction:

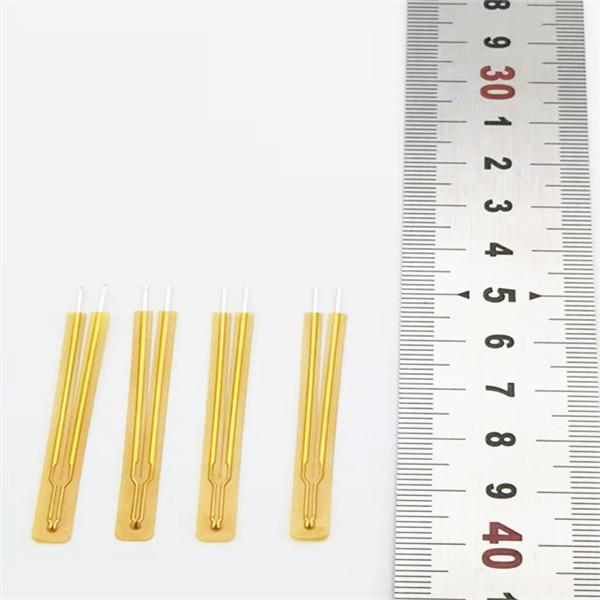

The width of the film is 3.9mm, Total length is 25mm, The resistance value of this size of product is 10KΩ3977K

Features:

Thin-film type

Operating temperature range: -40℃~100℃

R25℃=10kΩ±1%

B25/85=3977k±1%

Application:

Computer, printer, Battery pack

Part Number Code:

3977K 3.9mm 25mm Thin Film NTC Thermistor 10Kohm For Computer

Structure and Dimensions:

3977K 3.9mm 25mm Thin Film NTC Thermistor 10Kohm For Computer

Probe Size L L1 L2 H d1 d2 d3
3.6*25mm 25±1 20±1 8±1 3.6±0.2 0.15 max0.6 0.5
3.6*50mm 50±1 45±1 33±1 3.6±0.2
4.5*25mm 25±1 20±1 8±1 4.5±0.2
4.5*50mm 50±1 45±1 33±1 4.5±0.2
3.9*25mm 25±1 20±1 8±1 3.9±0.2

Electrical Specification:

Product Specification Rec. at 25℃(KΩ) Beta value (In air)
Pmax(mW)		 δ
(mW/℃)		 Thermal time constant τ(sec.) Operating Temperature Range TL-TH(℃) Total length
L(mm)
A6A103□3435B□□□□ 10 B25/85=3435 Approx.3.5 Approx.0.7 Max.5.0 -40~100 25~50
A6A103□3977B□□□□ 10 B25/85=3977 25~50
A6B203□3972B□□□□ 20 B25/85=3972 25~50
A6B104□3435B□□□□ 100 B25/50=3950 25~50

3977K 3.9mm 25mm Thin Film NTC Thermistor 10Kohm For Computer3977K 3.9mm 25mm Thin Film NTC Thermistor 10Kohm For Computer3977K 3.9mm 25mm Thin Film NTC Thermistor 10Kohm For Computer
