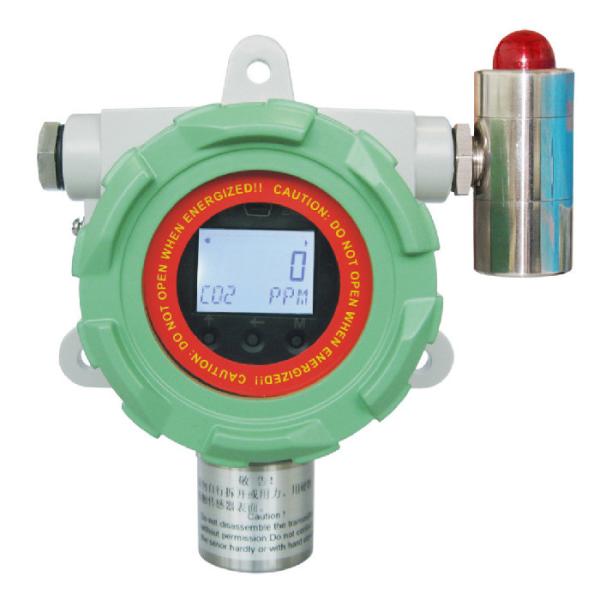

H2S O2 CO CO2 Industrial Gas Detector 4 To 20ma HART Protocol for Combustible / Toxic / Hydrogen Gas
H2S O2 CO CO2 Industrial Gas Detector 4 To 20ma HART Protocol for Combustible / Toxic / Hydrogen Gas
Specifications
Brand Name :
SENSE
Model Number :
CO, O2,H2S, H2
Certification :
HART
Place of Origin :
Shanghai China
MOQ :
1PC
Payment Terms :
T/T
Supply Ability :
10000PCS / Month
Delivery Time :
5-8 workdays
Packaging Details :
Carton packing
Detection Range :
0-100% LEL, 0-2000PPM
Measuring Range :
0-10% vol (0 to 99,999 ppm)
Sensor Type :
infrared laser
Power supply :
24V DC
Backlight :
Yes
Sensor :
Electrochemical Sensor
Display :
Digital LCD
Signal Output :
4-20mA
Certifications :
CE, ATEX
Data Hold :
Yes
Warranty :
12 Months
Explosion Protection :
Exib I
Continuously Working Time :
>24h
Description

CO gas detector CO2 H2S Gas alarm H2 gas transmitter 4 to 20ma output 485 protocol HART protocol Combustible gas detector Toxic and harmful gas detector

SEN series smart gas transmitter changes the gas concentration into standard 4~20mA current source signal, Online free parking digital free configuration,multi-parameter backlight LCD display, replacement of the sensor, plug and play, International standard fully intelligent with 2-wire smart toxic gas transmitter, 3- wire smart combustible gas transmitter.
SEN series smart gas transmitter with excellent performance, long term stability, easy to install andmaintain, measurement variety of gas. Great to meetthe requirements such as industrial field safety of testing equipment reliability, stability and measurement diversification gas. Our products has beenwidely used in petroleum, chemical, metallurgical, petrochemical, gas distribution transport, biochemical medicine and water treatment.
SEN series gas transmitter can measure a variety of gases and ranges to meet different needs of the site.
Features
  • 4-20mA, standard 2-wire(combustible:3 wire connection) , compatible with existing alarm control unit or DCS
  • Flameproof body design acc. to IEC61508,simple and easy installation and maintenance.
  • Multi-parameter backlight LCD display: measuring range,digital gas reading ,units, bar graph , system status etc.
  • International standard plug-in sensor, Plug and Play!
  • Sensor replacement without recalibration, automatic sensor data recognition. Sensor fault signal output monitoring and indicating.
  • Programmable alarm operation value, low or high level alarm indication.
  • Three-key operation for on-site configuration and maintenance.
  • PC programmable software for online configuration and maintenance.
  • PDA programmable software for configuration and maintenance on-site,field or remote operation separate from the control units.
  • Automatic temperature compensation ensure the correct measurement
Power supply
24VDC (10.5 ~ 45 VDC)
Linear output signal
 4~22.8mA with superimposed communication signal for HART protocol ,
Standard signal: 3.8mA. Failure signal: 3.6mA.
T90 response time
＜30 secretary
Resume time
 ＜35 secretary
Resolution
1 uA
Accuracy
±3%F.S.; ±1%F.S. (On request)
Display
backlight LCD, LED
Backlight LCD display
5-digit gas reading ,50 bar graph display 0-100% full scale"
Unit
ppm, mA, %,%LEL,%VOL
Operating temperature
-40~70℃ (According to gas sensor operating conditions)
Humidity
10-95%RH (non condensing)
Ex-protection
Exd IIC T6 (Flame-proof Type)
Electronic housing
Die-cast aluminium explosion-proof housing
Accessories material
Aluminium for O2,CO and combustible gas. Stainless steel for others
IP rating
Ip66
