SE634A Pressure Transmitter PCB Circuit Board HART 4 To 20mA Output OEM Pressure Transmitter Accessories
SE634A Pressure Transmitter PCB Circuit Board HART 4 To 20mA Output OEM Pressure Transmitter Accessories
Specifications
Brand Name :
SENSE
Model Number :
SE634A
Certification :
HART
Place of Origin :
Shanghai China
MOQ :
10PCS
Payment Terms :
T/T
Supply Ability :
10000PCS / Month
Delivery Time :
5-8 workdays
Packaging Details :
Carton packing
Power supply :
9 to 45V DC
Output :
4 to 20mA + HART
Material :
PCB
Application :
pressure transmitter
Color :
green
Size :
21.5*33m
Storage :
-40 to 85℃
Long-term stability :
≤0.05%/year
Description

HART protocl OEM pressure transmitter Module SE634A PCB circuit board 4 to 20mA output Pressure transmitter accessoriesHART pressure circuit board Pressure transmitter board card

  • Popular sensors acceptable
  • Self-stability and filter setup
  • Backup and restore data
  • Excellent EMC performance
  • Small size, simple mountin
    ​

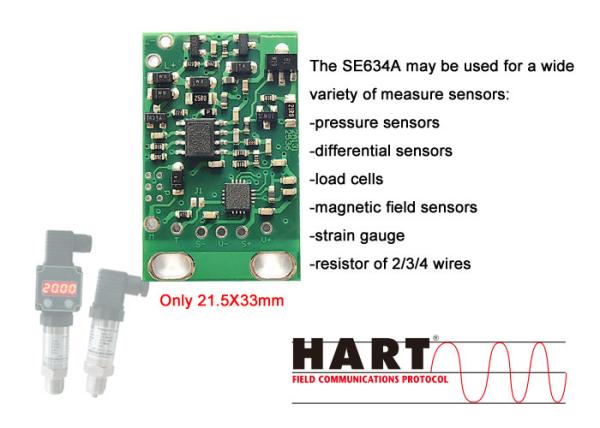

The SE634A with HART-protocol is compact.

The SE634A is suitable for various sensors and converts input signals into 4 to 20 mA analogue output signal.
The module is protected against miswiring and transient overvoltages.

Application areas
  • pressure sensors
  • differential sensors
  • load cells
  • magnetic field sensors
  • strain gauge
  • resistor of 2/3/4 wires
Power supply (polarity protected)
Supply voltage
9-45 VDC

Input
2-wire sensor
Such as:2-wire resistor, magnetic float ball,
magnetic rotating pole, etc
3-wire sensor
Such as:3-wire resistor, E+H Ceracore II,
E+H Ceracore M, etc.
4-wire sensor
Such as:4-wire resistor, all bridge sensors, etc.
mV
Such as: external voltage, etc.
Sensor supply
Constant voltage,constant current
Output signal
2-wire-system
4...20 mA with superimposed communication signal for HART protocol
Signal on alarm
3.8 mA/22.8mA others on request
Load
Max.(Vpower supply -12 V)/0.02 A

Dimensions(mm)
