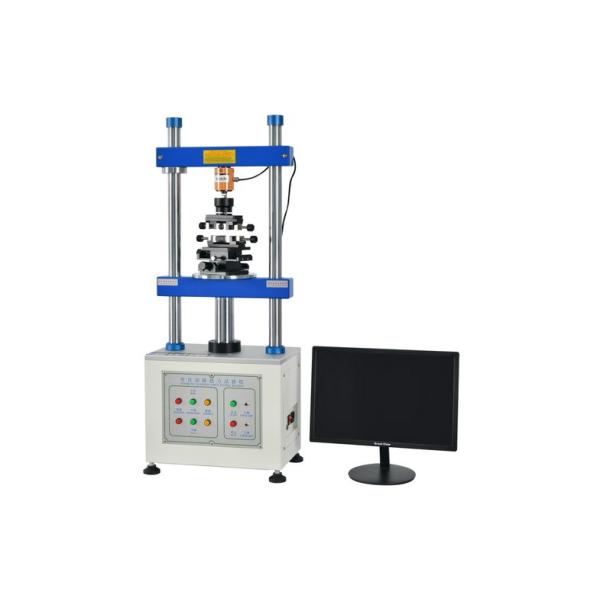

Insertion and Extraction Force Testing Machine with Max Height 150mm ASR-1220S
Insertion and Extraction Force Testing Machine with Max Height 150mm ASR-1220S
Specifications
Brand Name :
iqualitrol
Model Number :
ASR-1220S
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
10 Sets per Month
Delivery Time :
5 Working Days
Packaging Details :
Plywood Pallet
Model :
ASR-1220S
Data Output :
print and store graphics (plug-in displacement curve, life curve, inspection report)
Connector Test :
single hole plug-in test, full row plug-in test
Test Load :
50kg, 20kg, 5kg
Description

Insertion and Extraction

Force Testing Machine with Max Height 150mm ASR-1220S

Technical Specifications:

Test load 50kg, 20kg, 5kg
Resolution 0.01kg or 1g
Test height 150mm
Test speed 0~100mm/min
X.Y axis movement range 0~75mm
Transmission mechanism Ball screw
Dimension & weight 360*260*940mm, 70Kg
Power supply AC 110V or 220V

Test Items:

Connector single hole plug-in test

Connector full row plug-in test

Connector plug-in life test

Connector single PIN and plastic retention test

Connector NORMAL FORCE test

General compression, tensile damage test

Can be connected to contact impedance machine at the same time (optional)

Key Features:

1, Can print and store graphics (plug-in displacement curve, life curve, inspection report)

2, Test data is stored in the hard disk (every data can be stored, unlimited times)

3, Test conditions are set on the computer screen, convenient and fast (including plug-in stroke, speed, pause time, etc.)

4, Test report header content can be modified at any time

5, Test report can be converted to EXCEL
