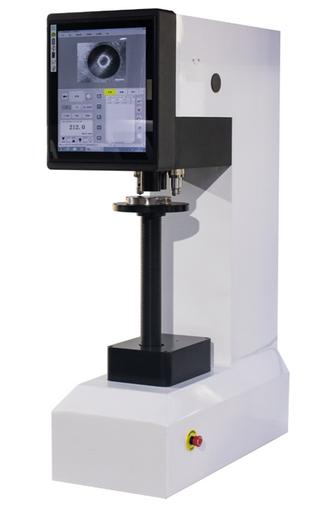

Dual objective lens three indenters touch screen automatic turret Brinell hardness tester
Dual objective lens three indenters touch screen automatic turret Brinell hardness tester
Specifications
Brand Name :
iqualitrol
Model Number :
3HBST-3000ZS
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
5 Sets/Month
Delivery Time :
10 Working Days
Packaging Details :
Plywood Box
Model :
3HBST-3000ZS
Lifting Mode :
Automatic lifting, one-button testing
Focus :
Automatic focus, no need for manual lifting screw focusing
Automatic turret :
2 Objective Lens, 3 Indenters
Description

Dual Objective Lens Three Indenters Touch Screen Automatic Turret Brinell Hardness Tester 3HBST-3000ZS


Main Functions and Features:
1. The iqualitrol 3HBST-3000ZS has the features of high precision, high repeatability and stability, simple operation, convenience and practicality, and extremely high cost performance;

2. Integrated embedded industrial tablet computer, supports USB expansion;

3. Equipped with the latest Windows operating system;

4. With 11 levels of test force, it can test a wider range;

5. Accurate data calculation system, just a click to directly display the hardness value;

6. Automatic lifting, no need to manually raise the lead screw.

7. Multi-station turret, equipped with three indenters and two objective lenses.

8. The system has a calibration function, and the input calibration instrument can be manually adjusted.

9. Support hardness conversion.

Technical Specifications:

Model 3HBST-3000ZS
Brinell scale HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5 HBW5/125, HBW5/250, HBW5/750 HBW10/100 HBW10/250 HBW10/500,HBW10/1000 HBW10/1500 HBW10/3000
Test force (11 levels) 31.25kgf(306.5N), 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(8907N), 1500kgf(14710N), 3000kgf(29420N)
Hardness reading Automatic measurement
Hardness value unit conversion Automatic conversion: Vickers, Rockwell
Screen 12-inch display
Loading process Real-time display of loading process, loading time <8s
Load control Automatic (loading/holding/unloading)
Workstation Five stations, can be equipped with 2 objective lenses and 3 indenters at the same time
Lifting Automatic lifting, one-button testing
Focus Automatic focus, no need for manual lifting screw focusing.
Turret Automatic turret, the pressure head and the objective lens rotate automatically
Maximum height of specimen 330mm
Indenter-outer wall distance 170mm
Objective lens 1X, 2X
Eyepiece 20X
Total magnification 20X, 40X
Hardness resolution 0.1HBW
Dwelling time 1-99s
Hardness test range 3.18~653HBW
Implementation standard EN ISO 6506, ASTM E-10-08, GB/T231.2, JJG150-2005
Data output Optional connection to a printer to print reports
Power supply AC220+5%, 50~60Hz
Dimensions (mm) 595*245*1000mm
Main unit weight About 135kg
