Cylindrical Bending Tester QTY-32
Cylindrical Bending Tester QTY-32
Specifications
Brand Name :
iqualitrol
Model Number :
QTY-32
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
10 Sets/Month
Delivery Time :
3 Working Days
Packaging Details :
Carton Box
Model :
QTY-32
Application :
check the cracking, peeling or other damage of the coating
Diameters of spindle :
2, 3, 4, 5, 6, 8, 10, 12, 16, 20, 25 and 32 mm
Testing Standards :
GB/T 6742, ISO 1519
Description

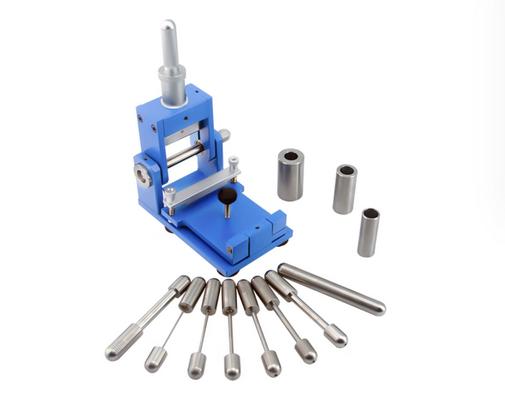

Cylindrical Bending Tester QTY-32

Brief Introduction:

Bend the coated metal substrate under a cylinder to obtain the ductility and adhesion index of the paint film under bending.

Cylindrical bending is to simply bend the test plate on a circular shaft of known diameter, and then check the cracking, peeling or other damage of the coating.

Diameters of spindle: 2, 3, 4, 5, 6, 8, 10, 12, 16, 20, 25 and 32 mm

Note: 20, 25, 32mm are axial sleeves;

Testing Standards: GB/T 6742, ISO 1519

Technical Specifications:

Diameters of spindle 2-32 mm
Board Dimension 120×50×1 mm
Overall Dimension 170×110×230 mm
Net Weight 7 kg
