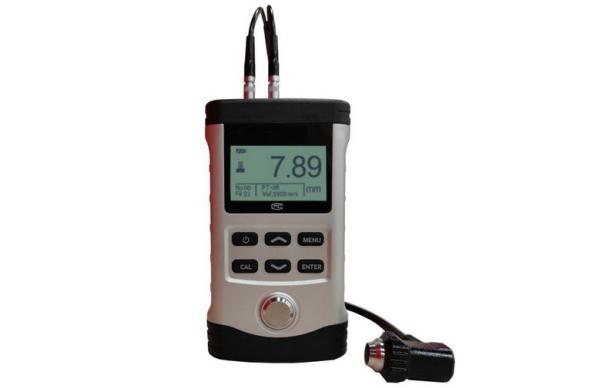

Echo Ultrasonic Thickness Gauge iqualitrol iSonic-3000E
Echo Ultrasonic Thickness Gauge iqualitrol iSonic-3000E
Specifications
Brand Name :
iqualitrol
Model Number :
iSonic-3000E
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
10 set per month
Delivery Time :
3 Working Days
Packaging Details :
Carton Box
Model :
iSonic-3000E
Sound velocity range :
1000~9990m/s
Accuracy :
0.1mm (measurement greater than 100mm); 0.01mm (measurement less than 100mm)
Storage capacity :
divided into 6 groups, 100 measurement points in each group, a total of 600 measurement points
Description

Echo Ultrasonic Thickness Gauge iqualitrol iSonic-3000E

Technical Specifications:

1. Measuring range: emission-echo mode, 1-500mm (depending on the specific probe); echo-echo mode, 3.0-20mm (E-E10 probe);

2. Sound velocity range: 1000~9990m/s;

3. Display digits: four digits;

4. Indication accuracy: 0.1mm (measurement greater than 100mm); 0.01mm (measurement less than 100mm);

5. Measurement error: H＜10mm, ±0.05; H≥10mm, ±(0.01+H/200). (H is the measured thickness value);

6. Operating environment: temperature: -10℃~60℃; relative humidity less than 90%;

7. Measurement method: manual storage measurement;

8. Storage capacity: divided into 6 groups, 100 measurement points in each group, a total of 600 measurement points;

9. Dimensions: 146mm*81mm*30mm;

10. Weight: 300g (including battery);

11. Power supply: two AA batteries;

12. Optional probes: PT-08, PT-06, PT-04, PT-10, ZT-12, GT-12, E-E10.
