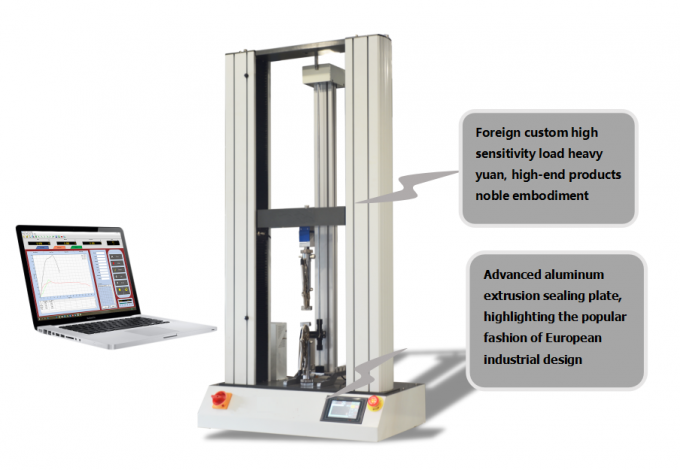

Computer Type Double Column Servo Tensile Compression Testing Machine iUTM-1166
Computer Type Double Column Servo Tensile Compression Testing Machine iUTM-1166
Specifications
Brand Name :
iqualitrol
Model Number :
iUTM-1166
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
10 Sets per Month
Delivery Time :
10 Working Days
Packaging Details :
Plywood Box
test software :
support automatically complete parameter setting, working state control, data acquisition and processing analysis, result display and printing output
high-precision sensor :
effective measurement range of 0.5%~100%F. S, the combined accuracy was better than 0.085%
AC servo motor :
high transmission efficiency, stable transmission, low noise, speed accuracy can be controlled within ± 0.2%
safety device :
Safety setting of upper and lower limits, emergency stop key
Description

Computer Type

Double Column Servo Tensile Compression Testing Machine iUTM-1166

Brief Introduction:

The iqualitrol iUTM-1166 computer-type servo pull-pressure testing machine is suitable for aerospace, petrochemical, machinery manufacturing, metal materials and products, wire and cable, rubber plastic, paper and color printing packaging, adhesive tape, bags and handbags, textile fiber, food, pharmaceutical and other industries.

The iqualitrol iUTM-1166 can test the physical properties of various materials and finished products, semi-finished products, choose a variety of different fixtures can be done tensile, compression, pull, pressure, bending, tearing, stripping, adhesion, shear and other tests.

Technical Specifications:

Model iUTM-1166
Capacity Selection 2, 5, 10, 20, 50, 100, 200, 500, 1000, 2000kgf
Accuracy of measuring force Better than ± 0.5%
Detective Resolution 1/500,000
Effective force measurement range 0.5~100%F.S
Accuracy of deformation value Better than ± 0.5%
Test speed range 0.05~1000mm/min, can be set
Max Stroke Maximum 1000mm, without fixture
Effective test space Front and back, left and right 400mm
Unit Switch Multiple units of measurement, including international units
Downtime Method Safety setting of upper and lower limits, emergency stop key, program force and elongation setting, specimen damage sensing
Specific Function Pull, pressure and fatigue test can be done
Standard Delivery 1 standard fixture, 1 set of software and data cable, 1 equipment power cable, 1 copy of operation manual, 1 product certificate, 1 product warranty card
Optional computer, printer, PT-211 two-point extension fixture, various test fixtures
Machine Size Approx. 760*460*1600mm (WDH)
Machine Weight About 160kg
Motive Power AC servo motor
Power Supply 1 PH, AC220V, 50Hz, 10A, or specified
Computer Type Double Column Servo Tensile Compression Testing Machine iUTM-1166
