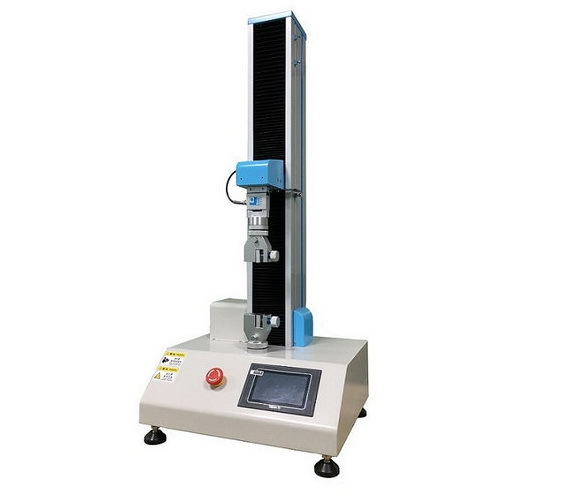

Battery Tab Strength Welding Points Tensile Testing Machine iUTM-D100
Battery Tab Strength Welding Points Tensile Testing Machine iUTM-D100
Specifications
Brand Name :
iqualitrol
Model Number :
iUTM-D100
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
20 Sets per Month
Delivery Time :
5 Working Days
Packaging Details :
Plywood Box
Data output :
micro printer to print test results, with functions such as point-to-print and curve printing
data statistics :
Single test, manual 10-point statistics, automatically calculate average value and fracture value
unit switching :
Force: kN/N/kgf/gf/t/lbf, Displacement: mm/cm/in
Travel Protection :
Set upper and lower limit switches to prevent exceeding the preset travel range
Force Protection :
The system can set a force value to prevent exceeding the calibrated value of the sensor
Stop modes :
Upper and lower limit safety settings, specimen break point sensing
Description

Battery Tab Strength Welding Points Tensile Testing Machine iUTM-D100

Brief Introduction:

The iqualitrol battery tab tensile testing machine, also known as a battery tensile tester, is mainly used for testing the tensile strength of battery welding points.

Safety Devices:

1. Travel Protection: Set upper and lower limit switches to prevent exceeding the preset travel range;

2. Force Protection: The system can set a force value to prevent exceeding the calibrated value of the sensor.

Technical Specifications:

Model iUTM-D100
Capacity 10N, 20N, 50N, 100N, 200N, 500N, 1000N
Controller Touch screen controller
Units kgf,gf,N,kN,lbf
Length units mm,cm,Inch
Pressure Units MPa,kPa,kgf/cm2,lbf/in2
Force resolution 1/100,000
Accuracy ±1%　
Test speeds 1—500mm/min, adjustable
Stroke 480mm
Test width 120mm
Stop modes Upper and lower limit safety settings, specimen break point sensing
Data output Thermal printer
Motor Stepper Motor, Stepper Driver
Power consumption 200W
Dimension 450*380*1080mm
Net weight 35kg
Power supply 220V 50Hz
Standard delivery Grip, power cable, manual
