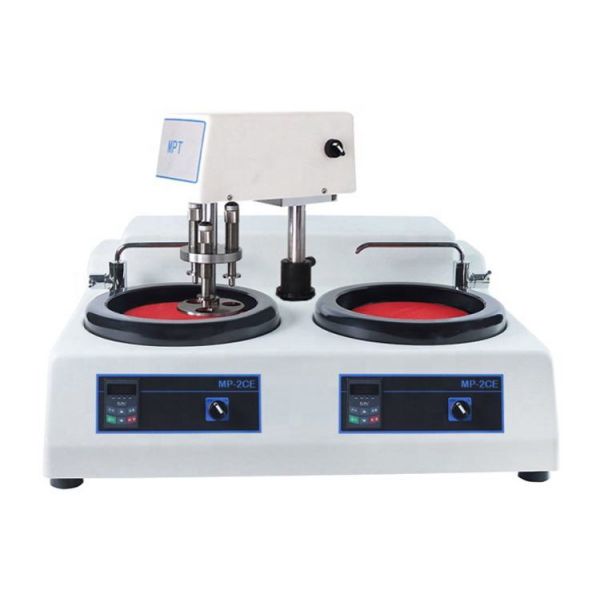

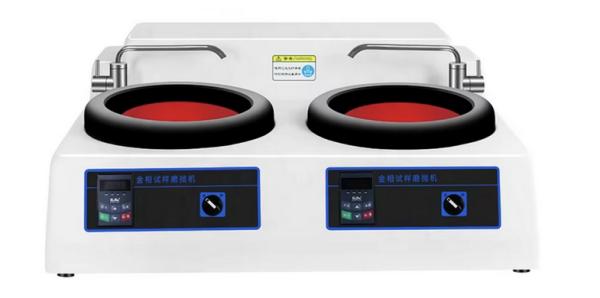

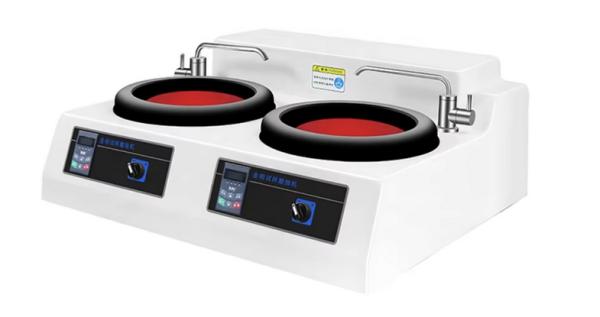

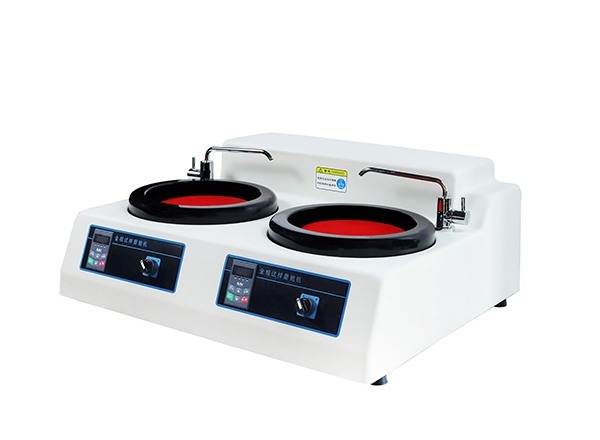

Stepless Speed Double Disc Metallographic Grinding and Polishing Machine with Two Motors
Stepless Speed Double Disc Metallographic Grinding and Polishing Machine with Two Motors
Stepless Speed Double Disc Metallographic Grinding and Polishing Machine with Two Motors
Stepless Speed Double Disc Metallographic Grinding and Polishing Machine with Two Motors
Stepless Speed Double Disc Metallographic Grinding and Polishing Machine with Two Motors
Stepless Speed Double Disc Metallographic Grinding and Polishing Machine with Two Motors
Stepless Speed Double Disc Metallographic Grinding and Polishing Machine with Two Motors
Stepless Speed Double Disc Metallographic Grinding and Polishing Machine with Two Motors
Specifications
Brand Name :
iqualitrol
Model Number :
MP-2CE
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
10 sets per month
Delivery Time :
10 Working Days
Packaging Details :
Plywood Pallet
MP-2CE :
Double Disc, Diameter 203mm
Speed :
Stepless Speed 50-1000rpm
Power :
Consumption 550W * 2
Cooling type :
Water Cooling Device
advantage :
Easy To Use, Safe And Reliable
ABS Shell :
Good Corrosion Resistance
Description

Stepless Speed Double Disc Metallographic Grinding and Polishing Machine with Two Motors

Brief Introduction:

The iqualitrol MP-2CE metallographic sample grinding and polishing machine is a double-disc machine, which can be operated by two people at the same time.

MP-2CE is suitable for pre-grinding, grinding and polishing of metallographic samples. The speed of the machine is adjusted by the frequency converter, and the speed between 50 and 1000 rpm can be directly obtained, so that the machine has a wider application.

It is an indispensable equipment for users to make metallographic samples. MP-2CE is equipped with a cooling device, which can cool the sample during pre-grinding to prevent damage to the metallographic structure due to overheating of the sample.

The machine is easy to use, safe and reliable, and is an ideal sample preparation equipment for factories, scientific research units and laboratories of colleges and universities.

The grinding and polishing machine consists of a base, a grinding and polishing disc and a control panel. The machine adopts ABS shell, which makes the machine more beautiful in appearance and has good corrosion resistance.

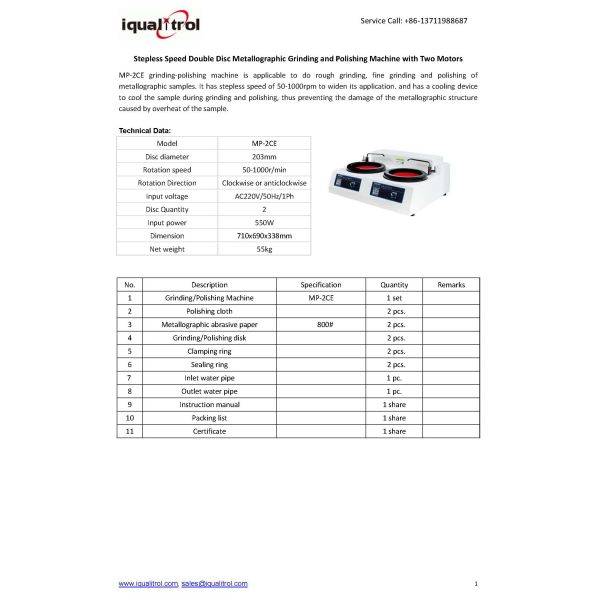

Technical Specifications:

Model MP-2CE
Grinding and polishing disc diameter 203mm
Grinding and polishing disc speed 50-1000rpm
Input power 550W*2
Dimensions 710*680*330mm
Net weight 50KG

Stepless Speed Double Disc Metallographic Grinding and Polishing Machine with Two Motors
