Spectrum Abrasive Belt Grinding Machine MY-1 with Fully Enclosed Stainless Steel
Spectrum Abrasive Belt Grinding Machine MY-1 with Fully Enclosed Stainless Steel
Specifications
Opening Size :
80×150mm
Speed :
1400 r/min
Brand Name :
iqualitrol
Model Number :
MY-1
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
10 sets per month
Delivery Time :
10 working days
Packaging Details :
Plywood Pallet
Belt Size :
920×100mm
Electromotor Power :
0.55kW
Description

Spectrum Abrasive Belt Grinding Machine MY-1 with Fully Enclosed Stainless Steel

Brief Introduction:

In the metallographic sample preparation and spectral analysis application, the grinding is an essential and important procedure.

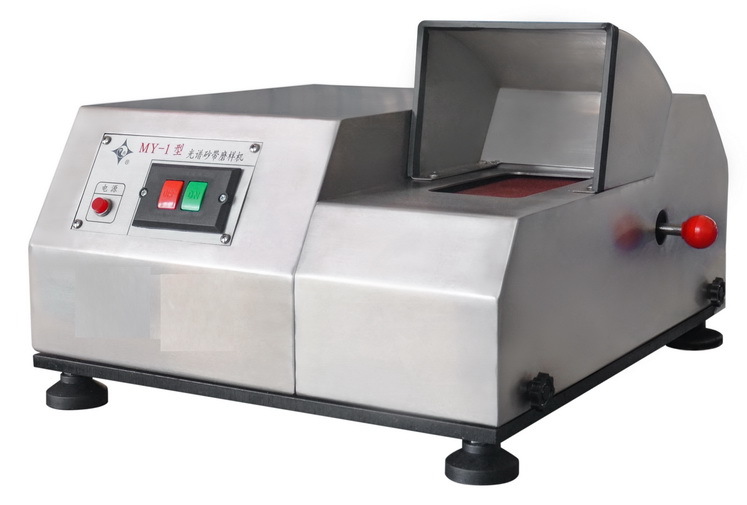

MY-1 is made of fully enclosed stainless steel. There is a water tank below the abrasive belt which could take the dirt into the water. It can adjust the tightness of the abrasive belt, which is easy to operate and maintain, safe and reliable.

Technical Specifications:

Model MY-1
Center Distance of Rolling Drum 310mm
Abrasive Belt Size 920×100mm
Opening Size 80×150mm
Speed 1400 r/min (480m/min)
Electromotor Power 0.55kW
Power Supply 380V, 50Hz, 5A,Three-phase four-wire
Dimensions 470×500×300mm
Net Weight 55kg

Packing List:

Name Specification Qty
Machine Body 1 set
Abrasive Belt 920×100mm 1 pc
Usage Instruction Manual 1 copy
