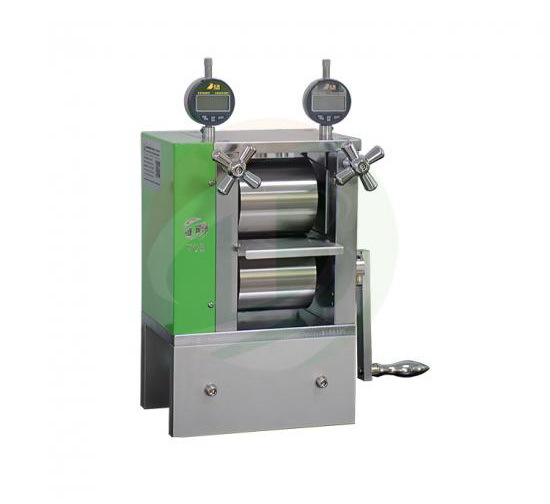

Precision 4 (100mm) Width Manual Rolling Press Machine with Dual Micrometer
Precision 4 (100mm) Width Manual Rolling Press Machine with Dual Micrometer
Specifications
Unit :
kgf, N, Lbf
Power Off :
10 Mins Auto Power Off, Manual Power Off
Brand Name :
iqualitrol
Model Number :
TOB-SG-100L
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
15 sets per month
Delivery Time :
15 working days
Packaging Details :
Plywood Pallet
Backlight :
Blue Backlight
Measurement State :
Peak Value, Real Time Measurement
Accuracy :
±0.5% FS ±1 Digit
Display :
2 Reversed 4 Digit LCD
Description

Precision 4" (100mm) Width Manual

Rolling Press Machine with Dual Micrometer For Lithium Battery Electrode Calendering

Brief Introduction:
The TOB-SG-100L Manual Rolling Press Machine is a precision laboratory calendering equipment designed for lithium-ion battery electrode processing.

It is mainly used to adjust electrode thickness and increase active material density after coating and drying.

Equipped with high-hardness rollers and a dual micrometer adjustment system, this machine ensures excellent rolling accuracy and consistency.

Its compact structure and easy operation make it an ideal solution for battery R&D laboratories and small-scale material testing.

Key Features:

● Optimized for Battery Electrode Calendering
Designed specifically for lithium-ion battery electrode rolling, improving density and electrochemical performance.

● High Precision Adjustment
Dual micrometers enable precise thickness control within 0–2mm, with rolling accuracy up to ≤±0.005mm.

● Durable Hardened Rollers
Φ96mm rollers made of hardened tool steel (HRC > 60) with chromium plating ensure long service life and smooth surface finishing.

● Compact Lab Design
Space-saving structure, easy manual operation, suitable for laboratory environments.

● Wide Material Compatibility
Applicable to battery electrodes and various metal materials such as copper, aluminum, gold, and silver.

Typical Applications:
● Lithium-ion battery electrode calendering
● Electrode thickness adjustment after coating
● Battery material density improvement
● Laboratory-scale metal rolling
● R&D and pilot-scale production

Model TOB-SG-100L 4" Width(100mm) Manual Rolling Press Machine
Warranty One year
Structure

1, Heavy duty steel frame, gears and handle

2, Φ96mm Dia. x 100mm width Rollers made from hardened tool steel (HRC > 60) with Cr electroplated coating

3, Dual micrometer for accurate thickness adjustment in the range 0 - 2 mm Maximum
Roller

Dimensions: 96mm(Dia.) x 100mm(W)
Material: Made from hardened tool steel (HRC > 60)
with Cr electroplated coating. With finish > 0.8
Rolling press accuracy ≤±0.005
Rolling press thickness 0-2mm adjusted with Dial gauge
Rolling press width Max 100mm
Product Dimensions 350 mm(L) x 240mm(W) x 350mm(H) (14" x 9.5" x 14")
Weight 45kg (100 lbs)

Application Notes

This roller is specially designed for battery R&D in terms of its advantages as affordable, compact and precise.

1, Must use to clean and dry rollers' surfaces after each use to avoid rusting;

2, Coated Rust-proof oil if machine were to be unused for a long period of time;

3, The minimum thickness of the rolled sheet should depend on the physical property of the materials.

Here are some results from our test:

Electrode Size

Original
thickness

 Finished thickness

LiFePO4
double sides

 50mm Width x 260mm Length 0.205mm 0.09mm

LiMn2O4
double sides

 50mm Width x 260mm Length 0.205mm 0.09mm

Copper foil + graphite
(single side)

 75mm Width x 240mm Length 0.09mm 0.04mm

Sample testing is available upon customer's request
