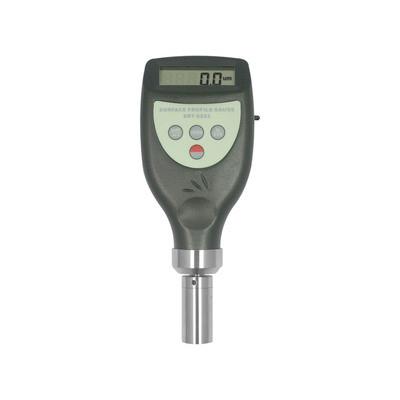

Surface Profile Gauge SRT-6223
Surface Profile Gauge SRT-6223
Specifications
Brand Name :
iqualitrol
Model Number :
SRT-6223
Certification :
CE
Place of Origin :
DONGGUAN
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 sets per month
Delivery Time :
10 work days
Packaging Details :
Carton box
Range :
0~800 m/29.5 mils
Accuracy :
=5%or5 m,(whichever is the greater)
Resolution :
0.1 m/1 m 0.1mils
Principle :
Inductance Type
Operating :
Temperature:0~50℃
Conditions :
Humidity:<80%RH
Description

Spec:For fast and accurate measurement of the peak-to-valley height of the surface profile of blast cleaned surface. Widely used in field of blast cleaned surface measurement.

Features

* It meets the standards of ASTMD- 4417-B, IMOMSC.215(82), SANS5772, US Navy NSI 009-32, US Navy PPI- 63101-000. Suitable for the laboratory and for use in harsh field conditions. Accurate, immediate and repeatable results.

* The tungsten carbide tip will last for up to 20,000 readings and can then be easily replaced by the user in the field. Cost per test is significantly lower than other test methods.

* Small in size, light in weight and easy to use.

* Manual or automatic power off.

* Metric/Imperial Conversion.

* With average calculation function.

* Use USB/RS-232 data output to connect with PC.

* Provide Bluetooth data output choice.

Specifications

Display LCD
Range 0~800 m/29.5 mils
Accuracy =5%or5 m,(whichever is the greater)
Resolution 0.1 m/1 m
0.1mils
Principle Inductance Type
Operating Temperature:0~50℃
Conditions Humidity:<80%RH
Power Supply 4x1.5V AAA(UM-4)Battery
Dimensions 162x65x28 mm
Weight 280g
Standard Accessories Main Unit
Standard Sample Plate
Carrying Case ( B04 )
Operation Manual
OptinalAccessories RS-232C Cable with Software
Bluetooth Adapter with Software
