Fully Automatic Brinell Hardness Tester MHBS-3000AZF with Motorized Lifting Structure
Fully Automatic Brinell Hardness Tester MHBS-3000AZF with Motorized Lifting Structure
Specifications
Brand Name :
iqualitrol
Model Number :
MHBS-3000AZF
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
10 sets per month
Delivery Time :
10 Working Days
Packaging Details :
Plywood Pallet
Test Report :
Automatically Generate Reports In Excel / PDF / CSV And Other Formats, And The Report Template Can Be Customized
Over Standard Alarm :
Automatically Mark The Abnormal Value. When The Hardness Exceeds The Specified Value, It Will Automatically Alarm
Hardness Value Conversion :
Can Convert The Measured Brinell Hardness Value HB Into Other Hardness Values, Such As HV, HR, Etc.
Data Statistics :
Automatically Calculates The Average Value, Repeatability Error, Variance And Other Statistical Values Of The Measured Hardness
Equipment Control :
Supports One Click Start Of Loading And Unloadin, Turret Homing And Automatic Measurement, Independent Control Of The Rise And Fall Of The Hardness Tester Platform
Automatic Measurement :
Automatically Or Manually Capture The Indentation, Measure The Indentation Diameter And Calculate The Corresponding Brinell Hardness Value
Description

Fully Automatic

Brinell Hardness Tester MHBS-3000AZF with Motorized Lifting Structure

Brief Introduction:

The iqualitrol MHBS-3000AZF fully automatic Rockwell hardness tester is used to measure the Brinell hardness of metals and some non-metallic materials.

The hardness system has high precision and high degree of automation, suitable for high-end customers who need large measurement workload or high precision requirements.

Technical Specifications:

Brinell Scales

HBW2.5/62.5, HBW2.5/187.5, HBW5/125, HBW5/750, HBW10/100,

HBW10/1500, HBW10/3000, HBW10/250, HBW10/500, HBW10/1000
Test Forces Kgf(N) 62.5 (612.9N), 100 (980.7N), 125 (1226N), 187.5 (1839N), 250 (2452N), 500 (4903N), 750 (7355N), 1000 (9807N), 1500 (14710)N, 3000 (29420N)
Test force accuracy 0.1%
Vertical Space 400mm, for Max height of specimens
Dwell Time 5-60 seconds
Brinell Range 8-650HBW
Executive Standards JJG150, GB/T231, ISO6506
Depth Throat 250mm, Distance from the indenter to inner wall
Lifting Structure Support both manual and automatic
Focusing Support both manual and automatic
Turret Auto Turret
Pixel of Camera 3MP
Indentation Measure Support both manual and automatic
Hardness display Automatic
Hardness conversion ASTM E140, Automatic
Unqualified value alarm Automatic prompting
Data Statistics Mean value, maximum value, minimum value, variance, repeatability, accuracy, qualified rate
Power Supply AC220+5%, 50-60Hz
Working Table 408*380mm
Machine Dimension 830*380*1200mm
Weight 300kg

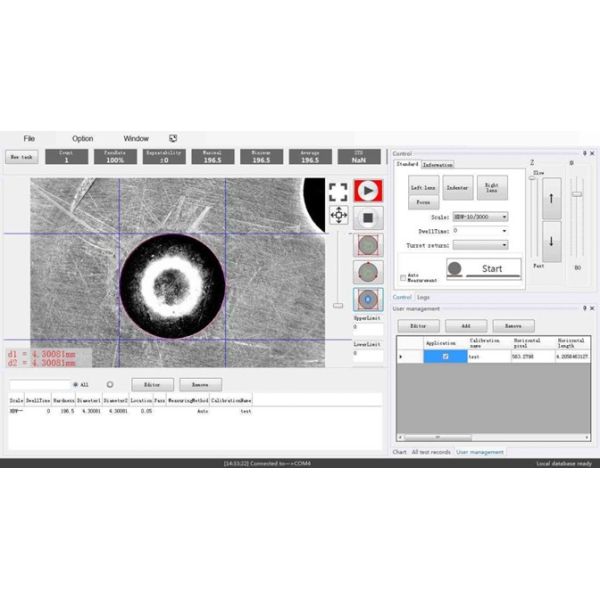

Automatic Brinell Measuring System of MHBS-3000AZF:

Fully Automatic Brinell Hardness Tester MHBS-3000AZF with Motorized Lifting Structure
