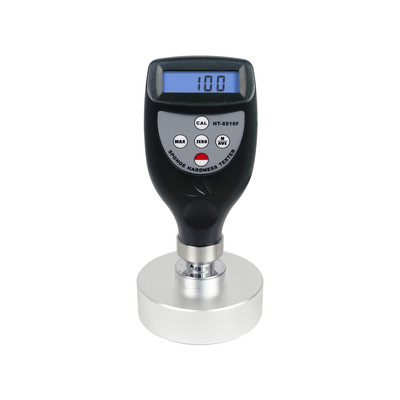

Foam Hardness Tester HT-6510F
Foam Hardness Tester HT-6510F
Specifications
Brand Name :
iqualitrol
Model Number :
HT-6510F
Certification :
CE
Place of Origin :
DONGGUAN
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 sets per month
Delivery Time :
10 work days
Packaging Details :
Carton box
Display Range :
0~100HF
Measurement Range :
10~90HF
Resolution :
0.1HF
Accuracy :
≤±1HF
Spring Force :
455gf
Sensor Foot Diamter :
80mm
Description

Spec:Model HT6510F is suitable for the hardness measurement of foam.

Features

* It meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215.

* With average calculate function.

* Peak value deposit function.

* Under-voltage alarm function.

* Use USB data output to connect with PC.

* Provide Bluetooth data output choice.

Specifications

Parameters Tested Result/Mean Value/Max.Value
Display Range 0~100HF
Measurement Range 10~90HF
Resolution 0.1HF
Accuracy ≤±1HF
Spring Force 455gf
Sensor Head Diameter 25mm
Sensor Foot Diamter 80mm
Battery Indicator Low Battery Indicator
Auto Switch Off √
Operating Conditions Temp:0~40ºC Humidity:10~90%RH
Power Supply 4x1.5V AAA Size(UM-4)Battery
Dimensions 162x80x80mm(6.4x3.1x3.1 inch)
Weight 490g
Standard Main Unit
Accessories Carrying Case(B04)
Operation Manual
Optional Accessories USB Data Cable with Software
Bluetooth Data Adapter with Software
