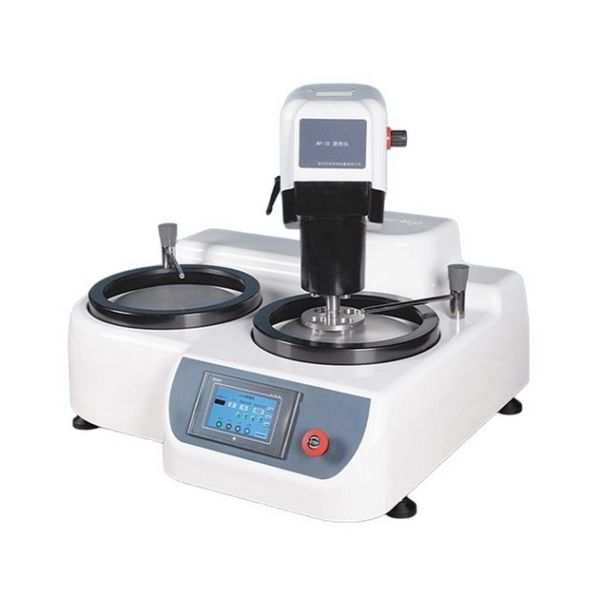

Double Disc Automatic Polishing Machine iPol-3S2 in Center Pressure
Double Disc Automatic Polishing Machine iPol-3S2 in Center Pressure
Specifications
Brand Name :
iqualitrol
Model Number :
iPol-3S2
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
10 sets per month
Delivery Time :
10 Working Days
Packaging Details :
Plywood Pallet
polishing disc :
Double Disc, φ230mm Optional φ250mm
Speed :
Stepless Speed 50-1000rpm
LCD screen :
Displays Pressure And Working Time
application :
Coarse Grinding, Fine Grinding
Air Pressure :
0.6-0.8MPa
Force pressure :
5-60 Newtons
Description

Double Disc Automatic Polishing Machine iPol-3S2 in Center Pressure

Brief Introduction:

The iqualitrol iPol-3S2 automatic grinding and polishing machine features advanced sample preparation capabilities, ensuring consistency and reproducibility of sample results.

Equips with touch screen control system, making the sample preparation process controllable. The grinding and polishing disc supports bidirectional rotation, with speed adjustable within a specified range.

The iqualitrol iPol-3S2 can support grinding and polishing of up to 6 samples at once, or a single sample.

Parameters such as preparation pressure and working time are displayed on the LCD screen, making user operation more intuitive and convenient.

iqualitrol iPol-3S2 is suitable for automatic sample preparation in the coarse grinding, fine grinding, coarse polishing to fine polishing processes of metallographic samples, making it an ideal choice for enterprises, research institutions, and metallographic laboratories in colleges and universities.

Technical Specifications:

Model iPol-3S2
Number of polishing discs 2
Diameter of polishing disc φ230mm optional φ250mm
Polishing disc speed 50-1000r/min
Polishing head speed 5-100 r/min
Load range 5-60 Newtons
Preparation time 0-9999 seconds
Sample diameter φ30mm (customizable)
Number of prepared samples 6 (customizable)
Air source 0.6-0.8MPa
Input voltage Single-phase AC220V 50Hz
Input power 1100W
Dimensions 760mm×735mm×635mm
Net weight 70kg
