Large Work Stage φ600mm Vertical Profile Projector JT36 Support 5X Lens with Parallel Light
Large Work Stage φ600mm Vertical Profile Projector JT36 Support 5X Lens with Parallel Light
Specifications
Brand Name :
iqualitrol
Model Number :
JT36
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
10 sets per month
Delivery Time :
20 Working Days
Packaging Details :
Plywood Pallet
JT36-500 :
Projector Screen φ500mm
JT36-600 :
Projector Screen φ600mm
Work Stage :
X-Y Coordinate, 200*100mm, 300*200mm
Z-coordinate :
For Focusing 80mm
Accuracy :
(4+L/40)μm
Load Capacity :
10kg For JT36-500; 5kg For JT36-600
Description

Large Work Stage 600mm

Vertical Profile Projector JT36 Support 5X Lens with Parallel Light

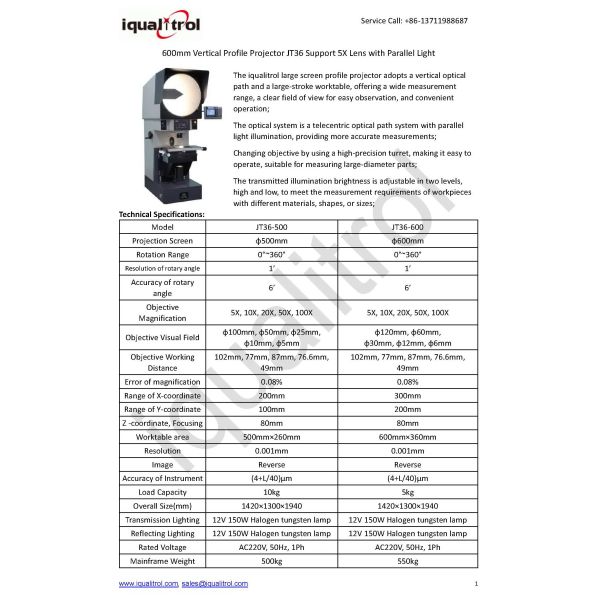

Download Technical Data: Measuring Profile Projector JT36

Brief Introduction:

The iqualitrol large screen profile projector adopts a vertical optical path and a large-stroke worktable, offering a wide measurement range, a clear field of view for easy observation, and convenient operation;

The optical system is a telecentric optical path system with parallel light illumination, providing more accurate measurements;

The objective lens change uses a high-precision turret, making it easy to change magnification, suitable for measuring large-diameter parts;

The transmitted illumination brightness is adjustable in two levels, high and low, to meet the measurement requirements of workpieces with different materials, shapes, or sizes;

Technical Specifications:

Model JT36-500 JT36-600
Projection Screen φ500mm φ600mm
Rotation Range 0°~360° 0°~360°
Resolution of the rotary angle 1′ 1′
Accuracy of the rotary angle 6′ 6′
Objective Magnification Power 5X, 10X, 20X, 50X, 100X 5X, 10X, 20X, 50X, 100X
Objective Visual Field φ100mm, φ50mm, φ25mm, φ10mm, φ5mm φ120mm, φ60mm, φ30mm, φ12mm, φ6mm
Objective Working Distance 102mm, 77mm, 87mm, 76.6mm, 49mm 102mm, 77mm, 87mm, 76.6mm, 49mm
Error of magnification 0.08% 0.08%
Range of X-coordinate (mm) 200mm 300mm
Range of Y-coordinate (mm) 100mm 200mm
Z -coordinate (Focusing)(mm) 80mm 80mm
Worktable area 500mm×260mm 600mm×360mm
Resolution 0.001mm 0.001mm
Image Reverse Reverse
Accuracy of Instrument (4+L/40)μm (4+L/40)μm
Load Capacity 10kg 5kg
Overall Size(mm) 1420×1300×1940 1420×1300×1940
Transmission Lighting 12V 150W Halogen tungsten lamp 12V 150W Halogen tungsten lamp
Reflecting Lighting 12V 150W Halogen tungsten lamp 12V 150W Halogen tungsten lamp
Rated Voltage AC220V, 50Hz, 1Ph AC220V, 50Hz, 1Ph
Mainframe Weight 500kg 550kg
