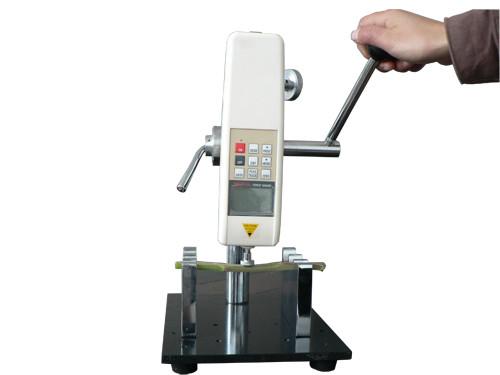

Max Loading 500N Stem Strength Tester for Lodging - Resistance Full Range Manual Calibration
Max Loading 500N Stem Strength Tester for Lodging - Resistance Full Range Manual Calibration
Specifications
Brand Name :
iqualitrol
Model Number :
YYD-1
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
30 sets per month
Delivery Time :
10 Working Days
Packaging Details :
Carton Box
Main load :
500N
Resolution :
0.01 N
Accuracy :
+/- 0.5%
Power supply :
AC220V, Batteries working: 6~8Hours
Calibration :
full range calibration
Humidity :
≤ 80%
Description

Max Loading 500N Stem Strength Tester for Lodging - Resistance Full Range Manual Calibration

Application:

The stem intensity of sorghum,maize,and tobacco is a major factor to decide the lodging-resistance ability. Since long-term, The lodging of sorghum, maize, tobacco has caused great difficulties in crops mechanized harvesting.

In current mechanization harvest level, a lot of crop is wasted. In addition, corn lodging, causing inadequate illumination.make its yield enormous limit. To cultivate high intensity stem of crop seed , This instrument applies to agricultural genetic breeding.

Function and Features:

Can be connected computers can save, testing, and print, do all kinds of analysis, the input speed, the area still can show displacement, pressure parameters,super memory storage function: test can be stored value; 896 LCD display, backlit function (backlighting for night), and has the screen number is, reverse function,

Automatic shutdown time Settings: automatic shutdown time Settings can be set for 10 minutes to 90 minutes automatic shutdown,Battery capacity show: Divided into 3 glen, 2 glen,1 glen and low power equipment automatic shutdown.

Technical Specifications:

Main.load: 500N (N, Kg and ib three units can be automatically converts),

Resolution: 0.01 N,

Accuracy +/- 0.5%; :

Power supply: the power charging 220V/AC, Batteries continuous working time: 6 ~ 8 hour,

Stability temperature drift: 0.2 uV/c (0-60 ° c), zero-drift ≤0.1% / 8 hours/FS,

Calibration: full range calibration,

Environmental temperature: 0 ~ + 60 ° c, Humidity:≤ 80%；

Allow overload: 150%,

Supply mode: no.5 batteries / 220V nickel cyanogen AC charging 4 ~ 6 hours.
