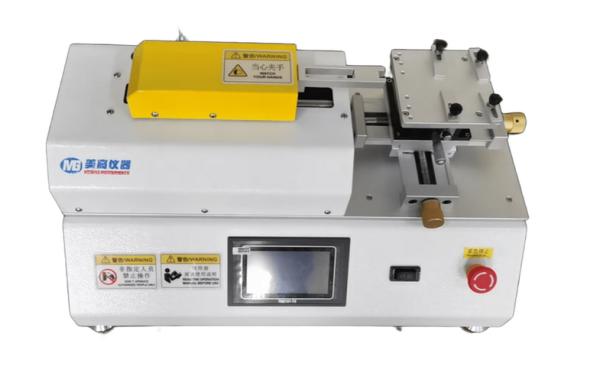

Horizontal Tensile Testing Machine MG-1103S
Horizontal Tensile Testing Machine MG-1103S
Specifications
Brand Name :
iqualitrol
Model Number :
MG-1103S
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
10 Sets per Month
Delivery Time :
10 Working Days
Packaging Details :
Plywood Box
Model :
MG-1103S
Result :
By using Computer software
Test Space :
420mm * 110mm
Motor :
Stepper motor drive
Description

Horizontal Tensile Testing Machine MG-1103S

Conform Testing Standards:
GB/T2792, ASTM D3330, GB2792-81

Application Ranges:

The MG-1103S horizontal testing machine is developed and designed for tape peeling tests. It uses a microcomputer chip for control and can perform tensile and peeling force tests on materials.

It features full computer operation, an automatic reset function, and can connect to a computer to output test graphs and tables as a basis for material testing.

Technical Specifications:

Capacity 10N, 20N, 50N, 100N, 200N, choose one as max force
Display By using Computer software
Force resolution 1/500,000
Force accuracy 0.30%
Travel resolution 1/500,000
Control mode Computer software
Stroke 420mm
Width 110mm
Speed 0.5～500mm/min
Force units kgf, N, Ibf, g, ton, Mpa
Stop modes

Overload shutdown, emergency stop button,

automatic shutdown upon specimen failure,

automatic shutdown at upper and lower limit settings,

automatic reset function
Dimension 1063 x 300 x 200mm (W×D×H)
Motor Stepper motor drive, synchronous pulley, and precision ball screw transmission
Power consumption 180W
Weight 45kg
Power supply 220V 50/60HZ 3A
Standard delivery Grip, software, USB cable
